Lubricator จำนวนผู้เข้าชม: 0 ครั้ง

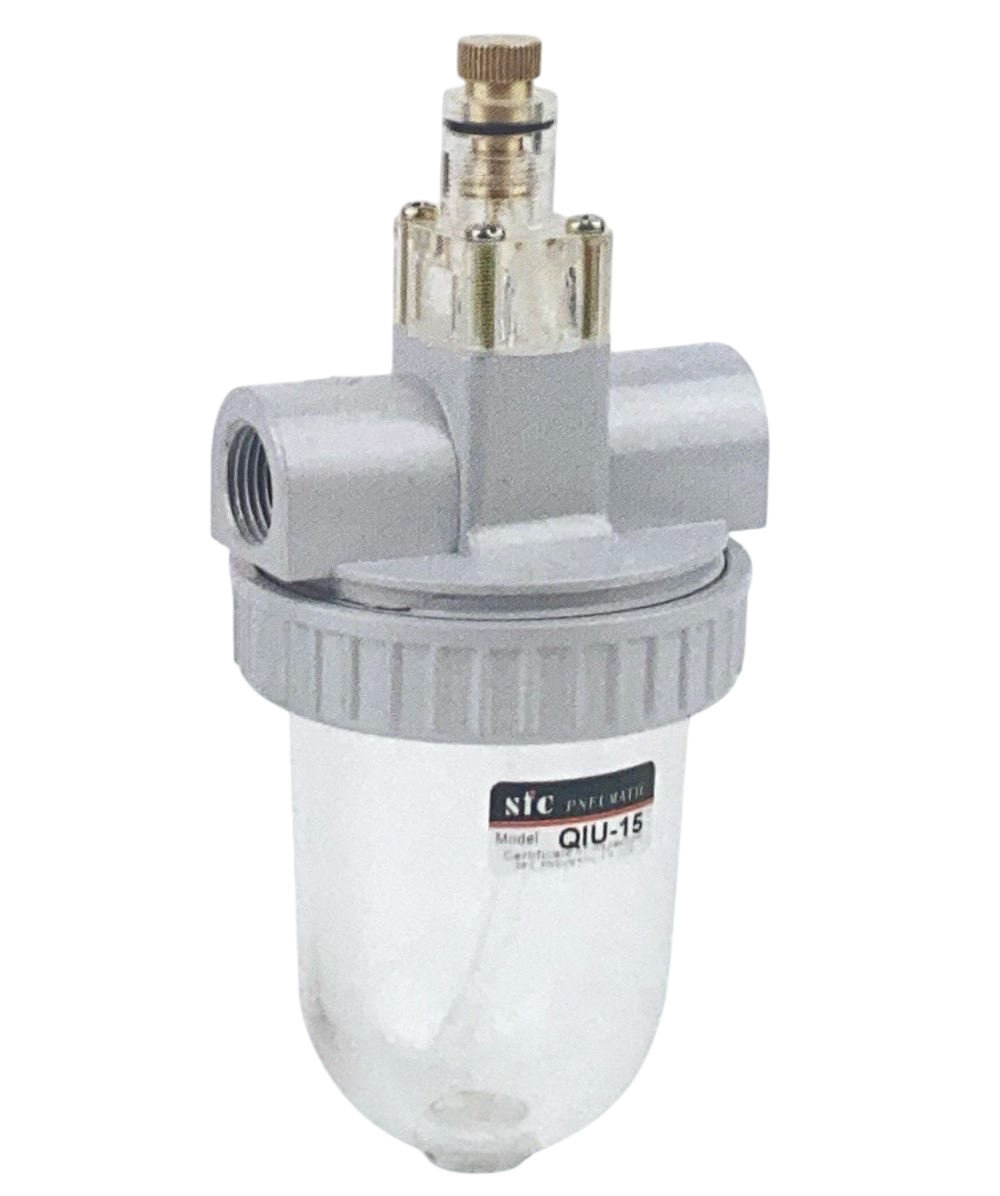

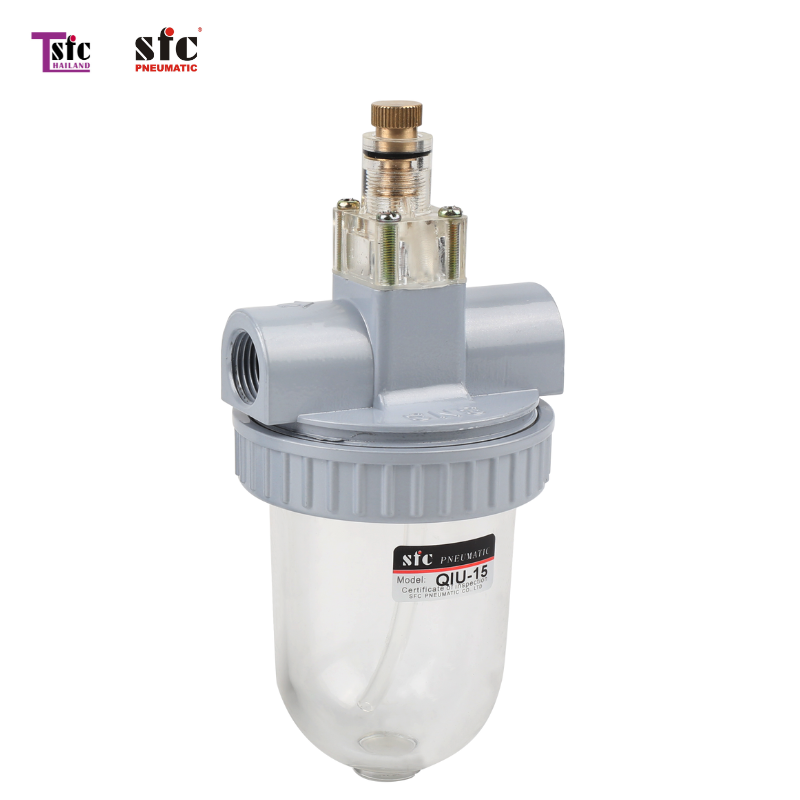

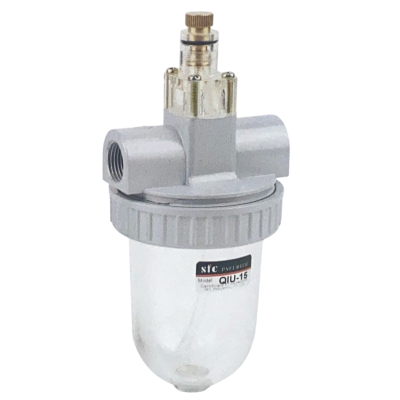

คุณสมบัติ,รายละเอียดอื่นๆ: Lubricator
| Type | Port size | Max.Flow rate | Max.operating pressure | Fluid temerature | Recommended lubrication | Note |
| QIU-08 | PT1/4 | 750 L/min | 0-10.2kgf/cm² | -5-55°C | ISO VG32 | 1.0MPa |
| QIU-10 | PT3/8 | 1800 L/min | 0-10.2kgf/cm² | -5-55°C | ||
| QIU-15 | PT1/2 | 3000 L/min | 0-10.2kgf/cm² | -5-55°C | ||
| QIU-20 | PT3/4 | 5000 L/min | 0-10.2kgf/cm² | -5-55°C | ||
| QIU-25 | PT1 | 7000 L/min | 0-10.2kgf/cm² | -5-55°C | ||
| QIU-32 | PT1-1/4 | 9000 L/min | 0-10.2kgf/cm² | -5-55°C | ||
| QIU-40 | PT1-1/2 | 11000 L/min | 0-10.2kgf/cm² | -5-55°C | ||
| QIU-50 | PT2 | 13000 L/min | 0-10.2kgf/cm² | -5-55°C |
