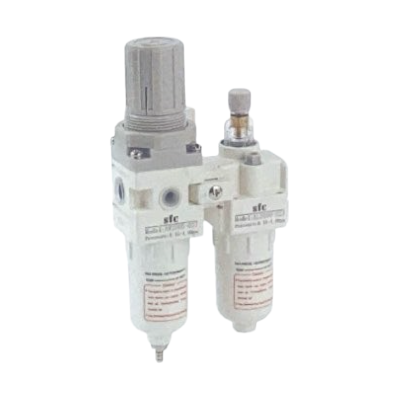

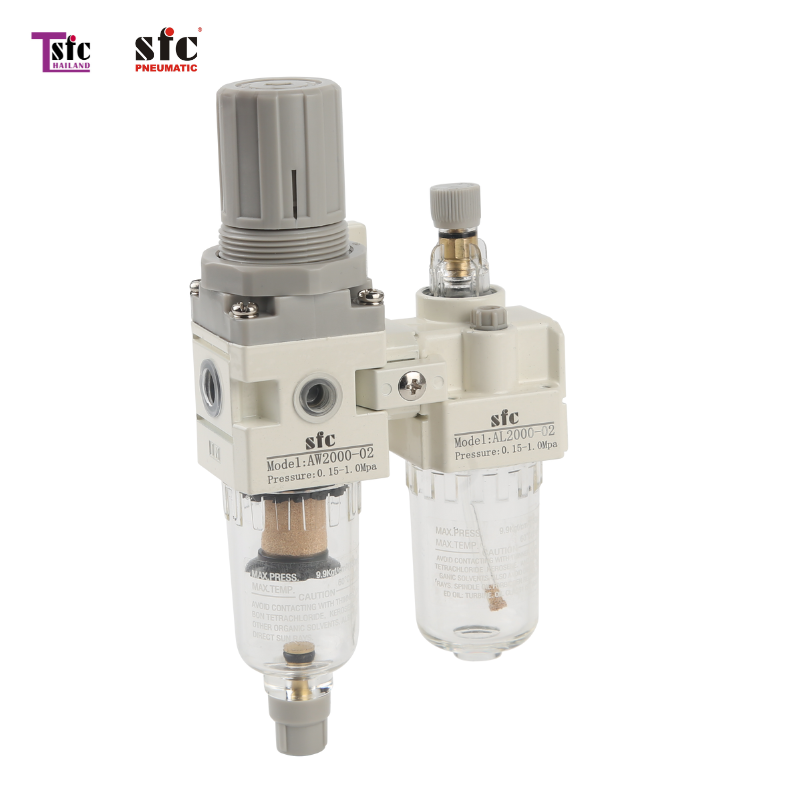

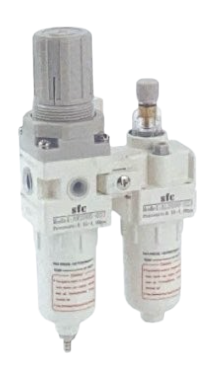

F.R.L Unit (Two unit) จำนวนผู้เข้าชม: 0 ครั้ง
คุณสมบัติ,รายละเอียดอื่นๆ: F.R.L Unit (Two unit)
| Model | Port size | Max.Flow rate | Max.operating pressure | Nominal filtration rate | pressure gauge | Note |
| NAC2010-02 | PT1/4 | 500 L/min | 1.5-9kgf/cm² | 40um | Y40-10-1/8 | Manual drain ISO VG32 |
| NAC2010-02J | ||||||
| NAC2010-02H | ||||||
| NAC3010-02 | PT1/4 | 1700 L/min | 1.5-9kgf/cm² | 40um | Y40-10-1/8 | |
| NAC3010-03 | PT3/8 | 1700 L/min | 1.5-9kgf/cm² | 40um | Y40-10-1/8 | |
| NAC4010-04 | PT1/2 | 3000 L/min | 1.5-9kgf/cm² | 40um | Y50-10-1/4 | |
| NAC4010-06 | PT3/4 | 3000 L/min | 1.5-9kgf/cm² | 40um | Y50-10-1/4 | |
| NAC5010-06 | PT3/4 | 5000 L/min | 1.5-9kgf/cm² | 40um | Y50-10-1/4 | |
| NAC5010-10 | PT1 | 5000 L/min | 1.5-9kgf/cm² | 40um | Y50-10-1/4 |
