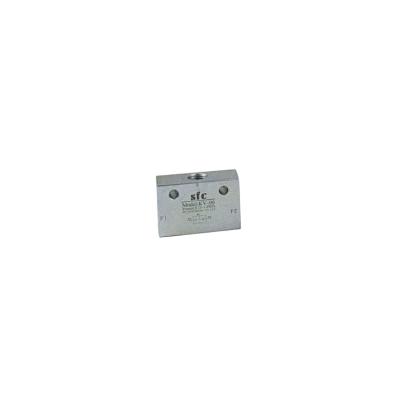

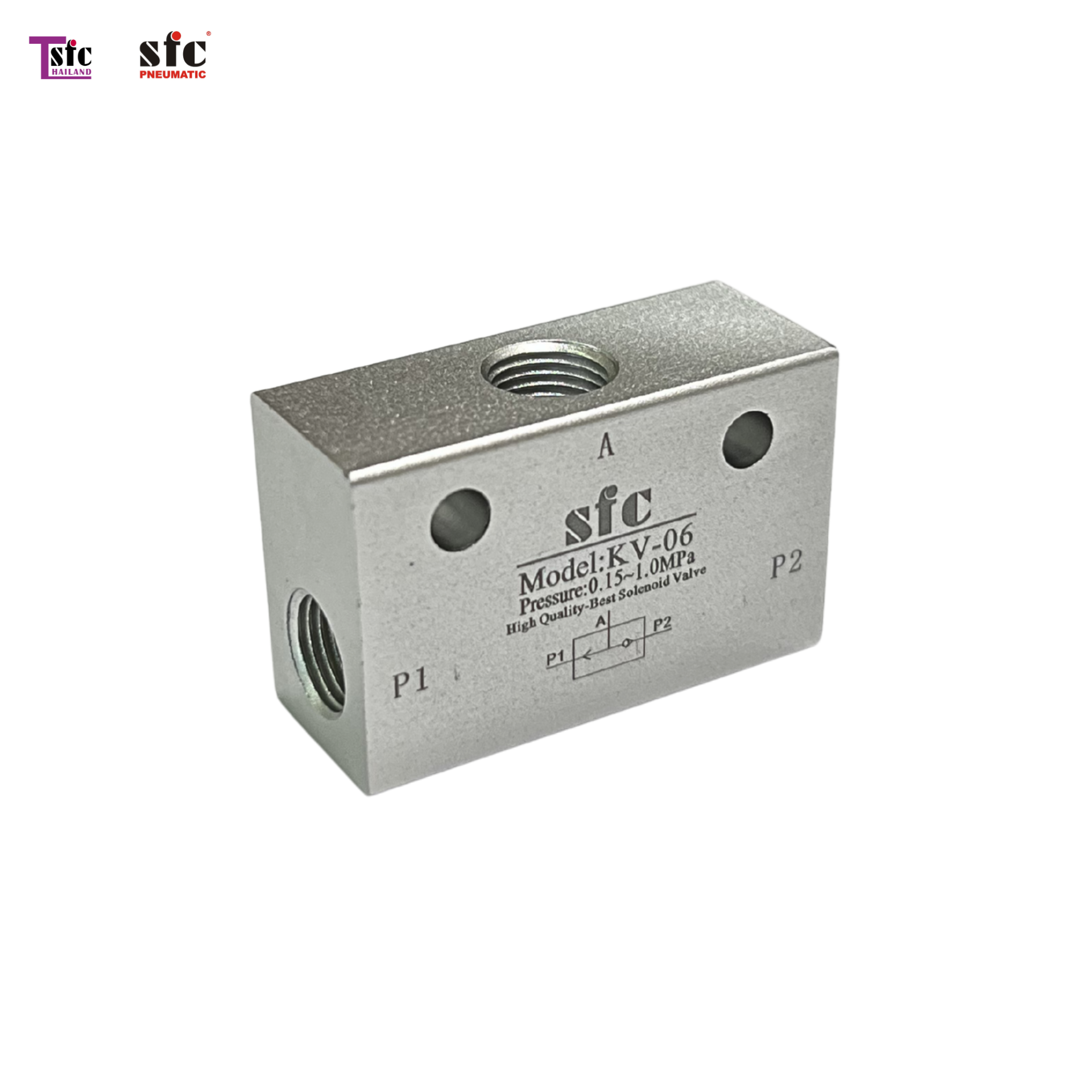

CHECK VALVE KV SERIES Visitor: 0 times
Specification, Detail: CHECK VALVE KV SERIES
| Type | Port size | Effective area | Temperature | Fluid | Material | Pressure rang | Operating Pressure |
| KV-06 | PT1/8 | 10mm | -5-55°C | Air | Aluminum alloy | 0-10.2kgf/cm² | 0.5kgf/cm² |
| KV-08 | PT1/4 | 10mm | -5-55°C | ||||
| KV-10 | PT3/8 | 21mm | -5-55°C | ||||
| KV-15 | PT1/2 | 21mm | -5-55°C | ||||
| KV-20 | PT3/4 | 47mm | -5-55°C | ||||
| KV-25 | PT1 | 47mm | -5-55°C |
