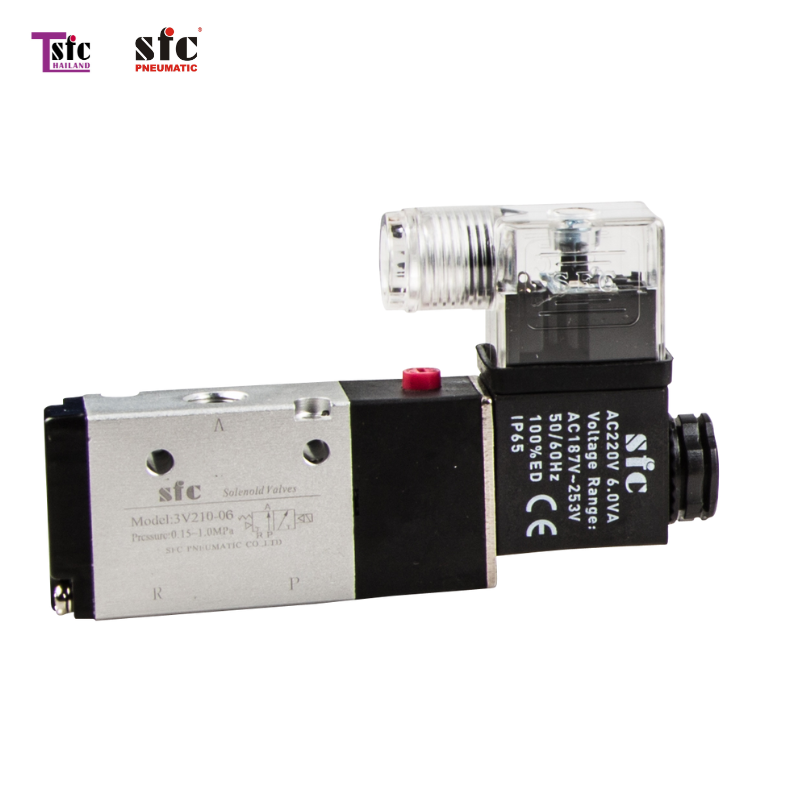

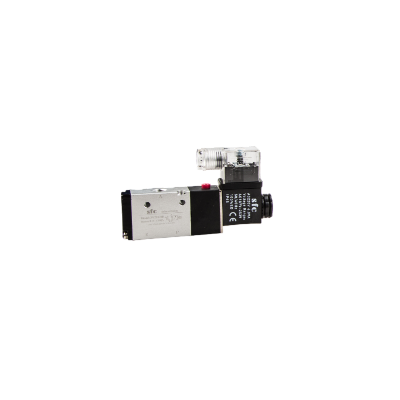

SOLENOID VALVE 3V SERIES จำนวนผู้เข้าชม: 0 ครั้ง
คุณสมบัติ,รายละเอียดอื่นๆ: SOLENOID VALVE 3V SERIES
| Type | Port size | Effective area | Temperatue | CV Value | Power consumption | Position&coil | operating pressure | Valtage |
| 3V110-06 | PT1/8 | 10mm | -5-55°C | 0.56 | 3VA | 2/2 way Internally piloted acting type Single electrical control | 0-9/kgf/cm² | DC12V DC24V DC48V AC24V AC36V AC110V AC220V |
| 3V210-08 | PT1/4 | 14mm | -5-55°C | 0.78 | 3VA | |||
| 3V310-10 | PT3/8 | 25mm | -5-55°C | 1.40 | 3VA | |||
| 3V410-15 | PT1/2 | 50mm | -5-55°C | 2.80 | 3VA | |||
| 3V120-06 | PT1/8 | 10mm | -5-55°C | 0.56 | 3VA | 3/2 way Internally piloted acting type Double electrical control | ||
| 3V220-08 | PT1/4 | 14mm | -5-55°C | 0.78 | 3VA | |||
| 3V320-10 | PT3/8 | 25mm | -5-55°C | 1.40 | 3VA | |||
| 3V420-15 | PT1/2 | 50mm | -5-55°C | 2.80 | 3VA |
