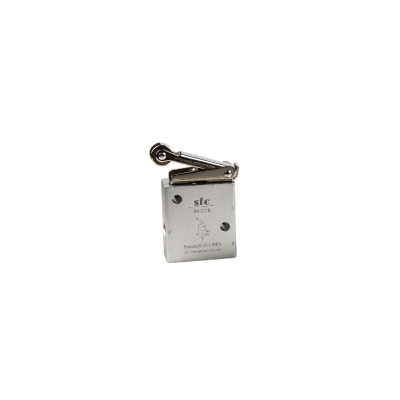

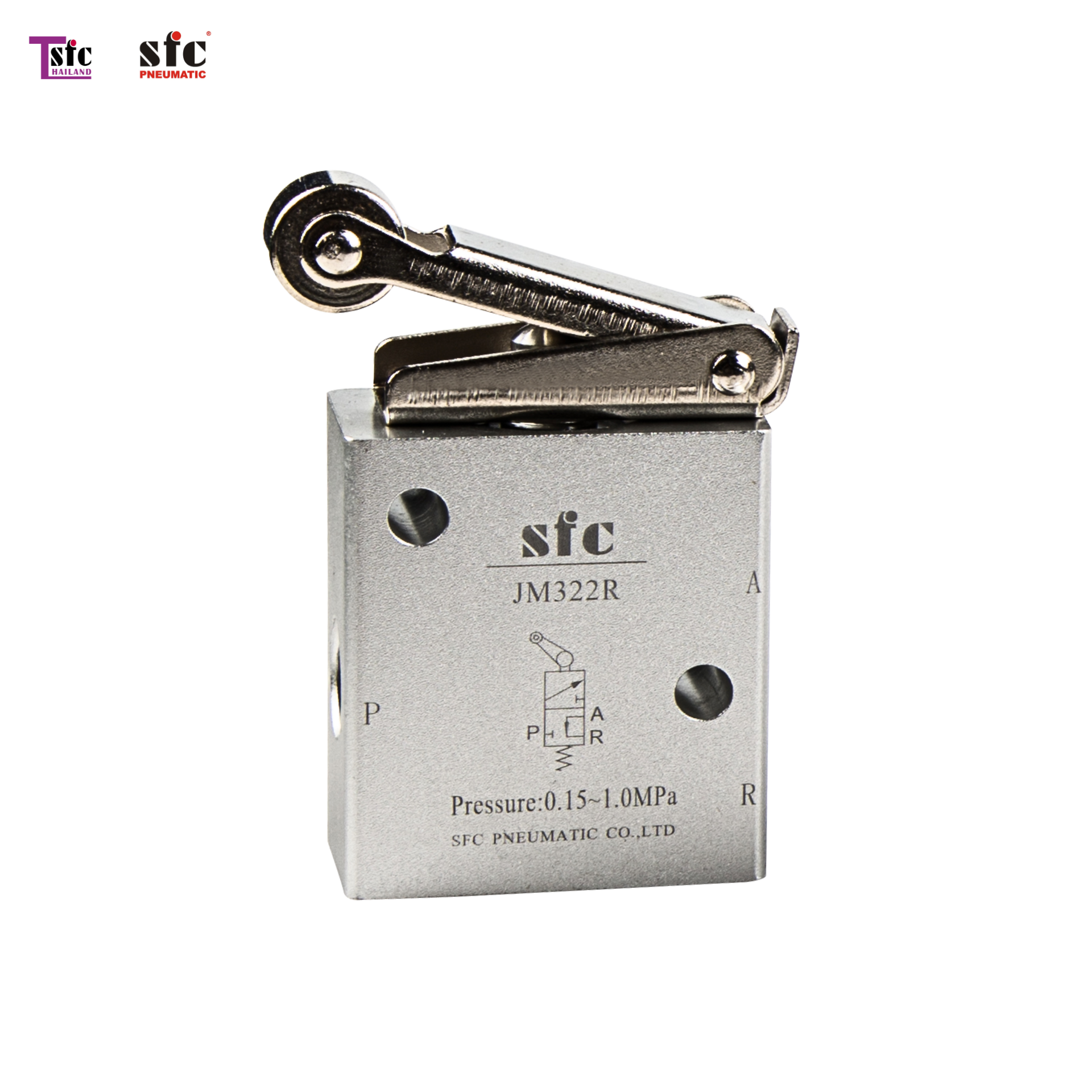

MECHANICAL VALVE JM SERIES จำนวนผู้เข้าชม: 0 ครั้ง
คุณสมบัติ,รายละเอียดอื่นๆ: MECHANICAL VALVE JM SERIES
| Type | Port size | Effective area | Temperature | CV Value | Control type | Valve type | Operaing pressure |
| JM-05 | PT1/4 | 24mm² | -5-55°C | 1.20 | Selector | 3/2 way Normally closed type | 0-10kgf/cm² |
| JM-06 | PT1/4 | 24mm² | -5-55°C | 1.20 | Roller lever | ||
| JM-06A | PT1/4 | 24mm² | -5-55°C | 1.20 | Push button | ||
| JM-07 | PT1/4 | 24mm² | -5-55°C | 1.20 | Spring return push button |
