MECHANICAL VALVE MOV SERIES จำนวนผู้เข้าชม: 0 ครั้ง
คุณสมบัติ,รายละเอียดอื่นๆ: MECHANICAL VALVE MOV SERIES
| Type | Port size | Effective area | Temperature | CV Value | Control type | Valve type | Operaing pressure |
| MOV-01 | PT1/8 | 24mm² | -5-55°C | 1.20 | Selector | 3/2 way Normally closed type | 0-10kgf/cm² |

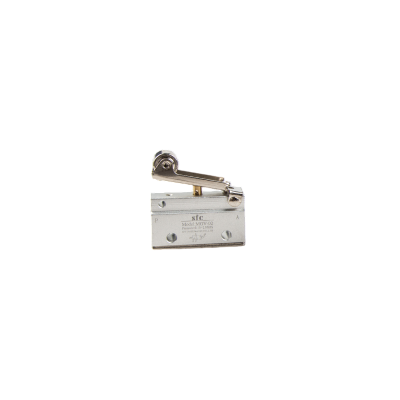

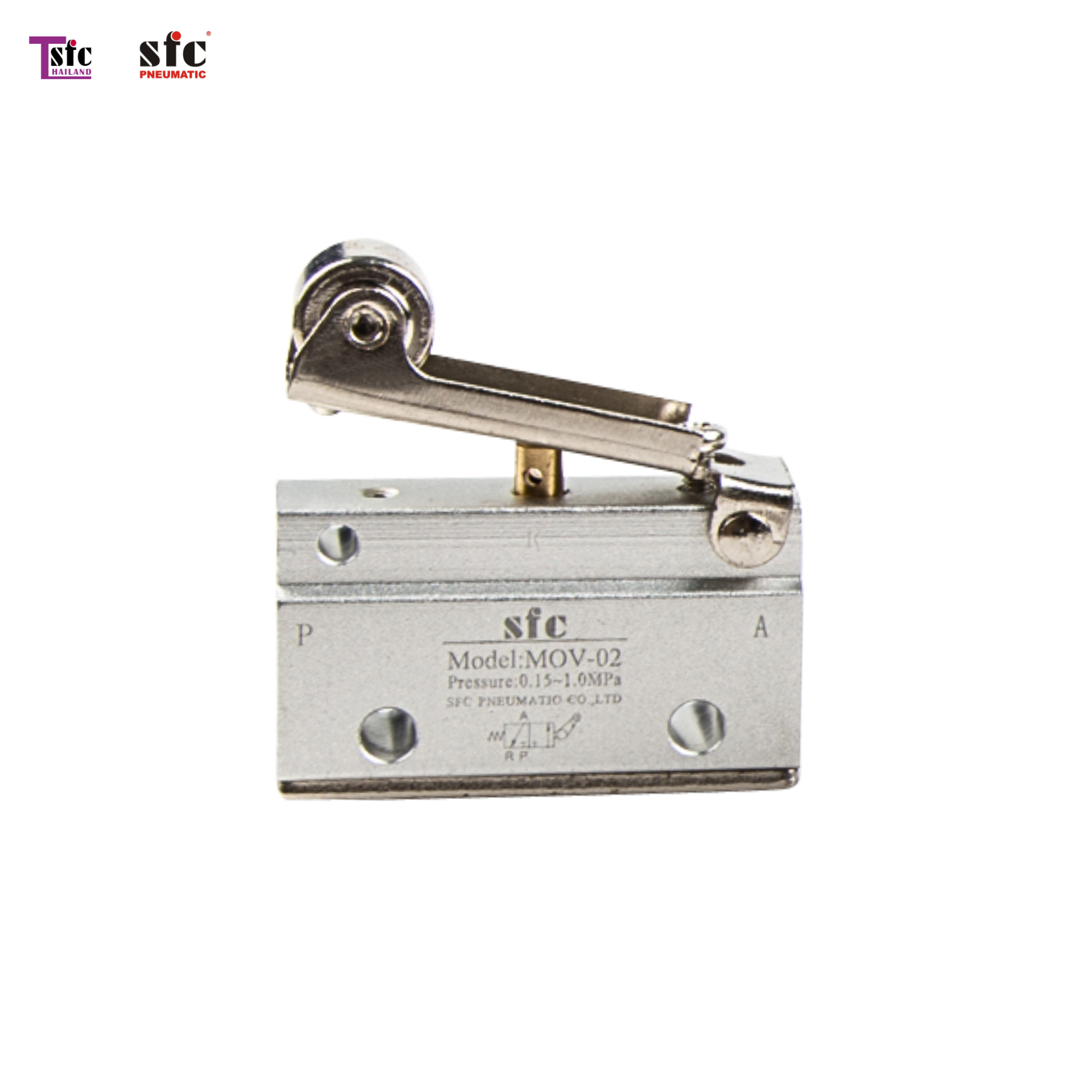

| MOV-02 | PT1/8 | 24mm² | -5-55°C | 1.20 | Roller lever | ||
| MOV-03 | PT1/8 | 24mm² | -5-55°C | 1.20 | Push button | ||
| MOV-03A | PT1/8 | 24mm² | -5-55°C | 1.20 | Spring return push button |
