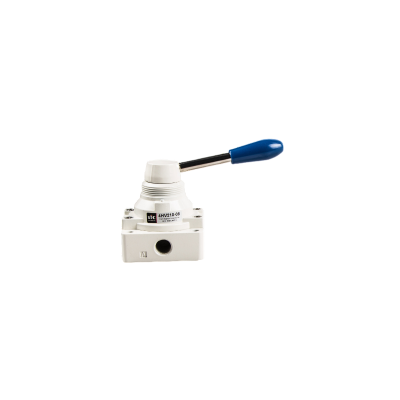

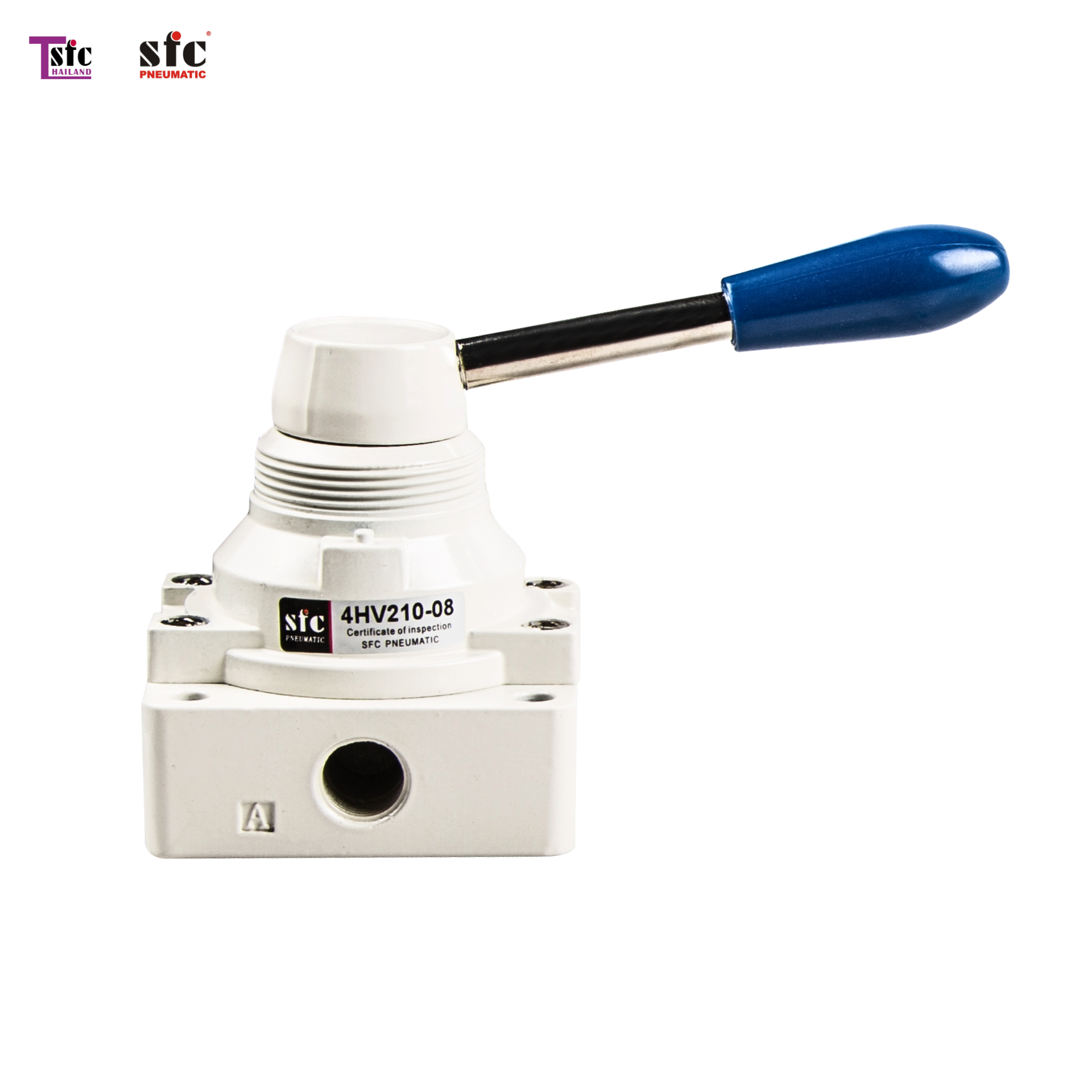

ROTARY LEVER VALVE 4HV SERIES จำนวนผู้เข้าชม: 0 ครั้ง
คุณสมบัติ,รายละเอียดอื่นๆ: ROTARY LEVER VALVE 4HV SERIES
| Type | Port size | Effective area | Temperature | CV Value | Control type | Valve type | Operating pressure |
| 4HV210-06 | PT1/8 | 14mm² | -5-55°C | 0.78 | Hand return | 4/2 way | 0-10kgf/cm² |
| 4HV210-06 | PT1/4 | 16mm² | -5-55°C | 0.89 | |||
| 4HV210-06 | PT1/4 | 30mm² | -5-55°C | 1.67 | |||
| 4HV210-06 | PT3/8 | 33mm² | -5-55°C | 1.83 | |||
| 4HV210-06 | PT1/2 | 88mm² | -5-55°C | 4.89 | |||
| 4HV210-06 | PT3/4 | 95mm² | -5-55°C | 5.27 | |||
| 4HV210-06 | PT1/8 | 14mm² | -5-55°C | 0.78 | 4/3 way midst closed type | ||
| 4HV210-06 | PT1/4 | 16mm² | -5-55°C | 0.89 | |||
| 4HV210-06 | PT1/4 | 30mm² | -5-55°C | 1.67 | |||
| 4HV210-06 | PT3/8 | 33mm² | -5-55°C | 1.83 | |||
| 4HV210-06 | PT1/2 | 88mm² | -5-55°C | 4.89 | |||
| 4HV210-06 | PT3/4 | 95mm² | -5-55°C | 5.27 |
