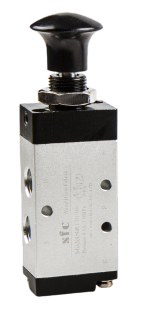

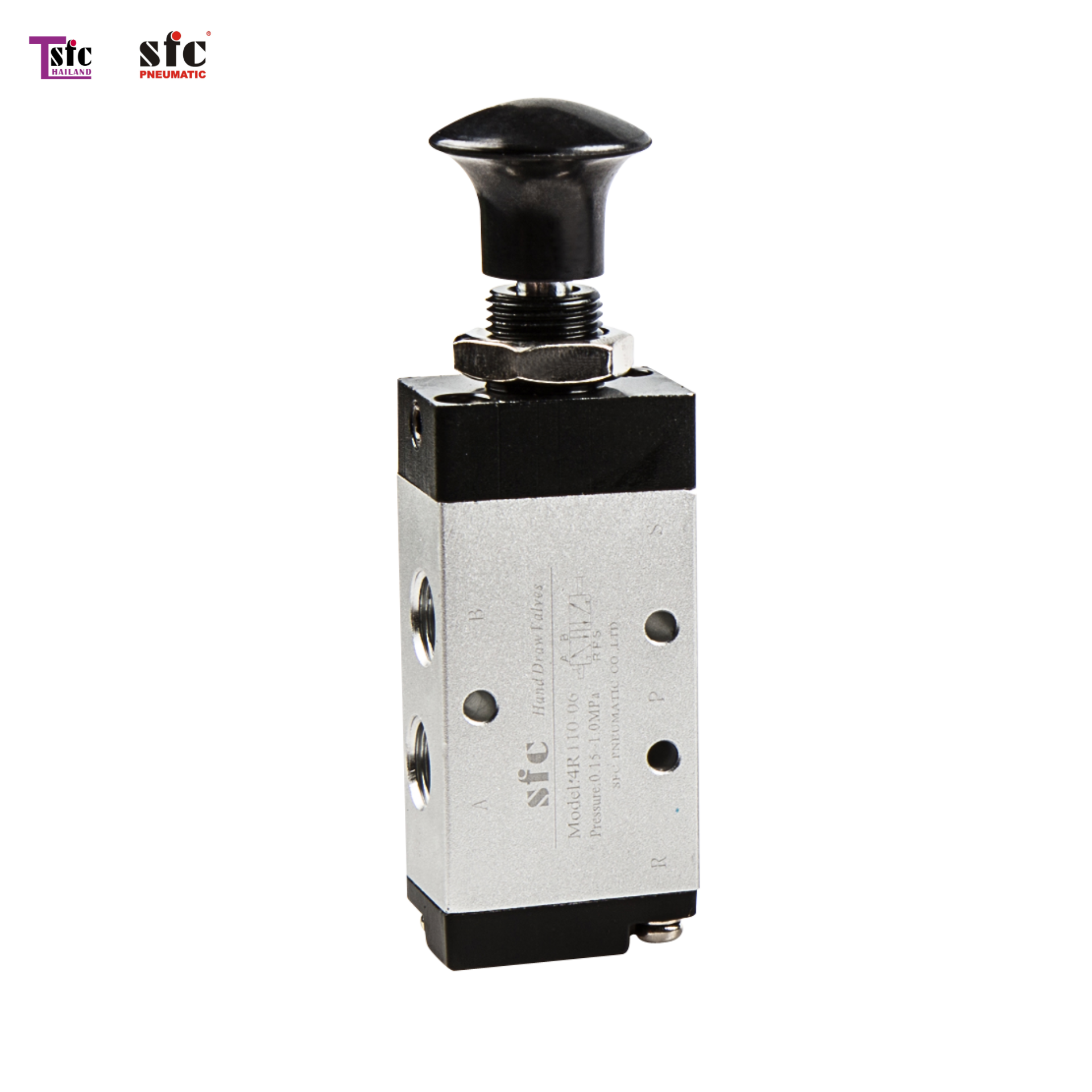

HAND DRAW VALVE 3R/4R SERIES จำนวนผู้เข้าชม: 0 ครั้ง
คุณสมบัติ,รายละเอียดอื่นๆ: HAND DRAW VALVE 3R/4R SERIES
| Type | Port size | Effective area | Temperature | CV Value | Control type | Valve type | Operating pressure |
| 3R210-08 | PT1/4 | 16mm² | -5-55°C | 0.89 | Hand return | 3/2 way | 0-10kgf/cm² |
| 3R310-10 | PT3/8 | 25mm² | -5-55°C | 1.40 | |||
| 3R410-15 | PT1/2 | 30mm² | -5-55°C | 1.68 | |||
| 4R210-08 | PT1/4 | 16mm² | -5-55°C | 0.89 | Hand return | 5/2 way | |
| 4R310-10 | PT3/8 | 25mm² | -5-55°C | 1.40 | |||
| 4R410-15 | PT1/2 | 30mm² | -5-55°C | 1.68 | |||
| 4R230C-08 | PT1/4 | 16mm² | -5-55°C | 0.89 | Self return | 5/3 way midst closed type | |
| 4R330C-10 | PT3/8 | 25mm² | -5-55°C | 1.40 | |||
| 4R430C-15 | PT1/2 | 30mm² | -5-55°C | 1.68 |
