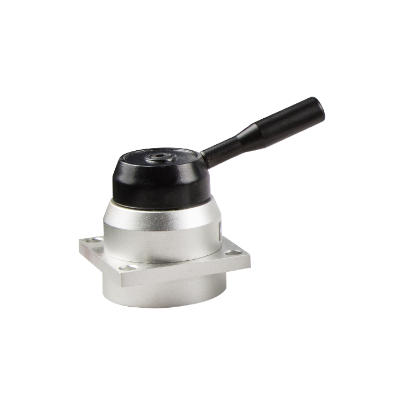

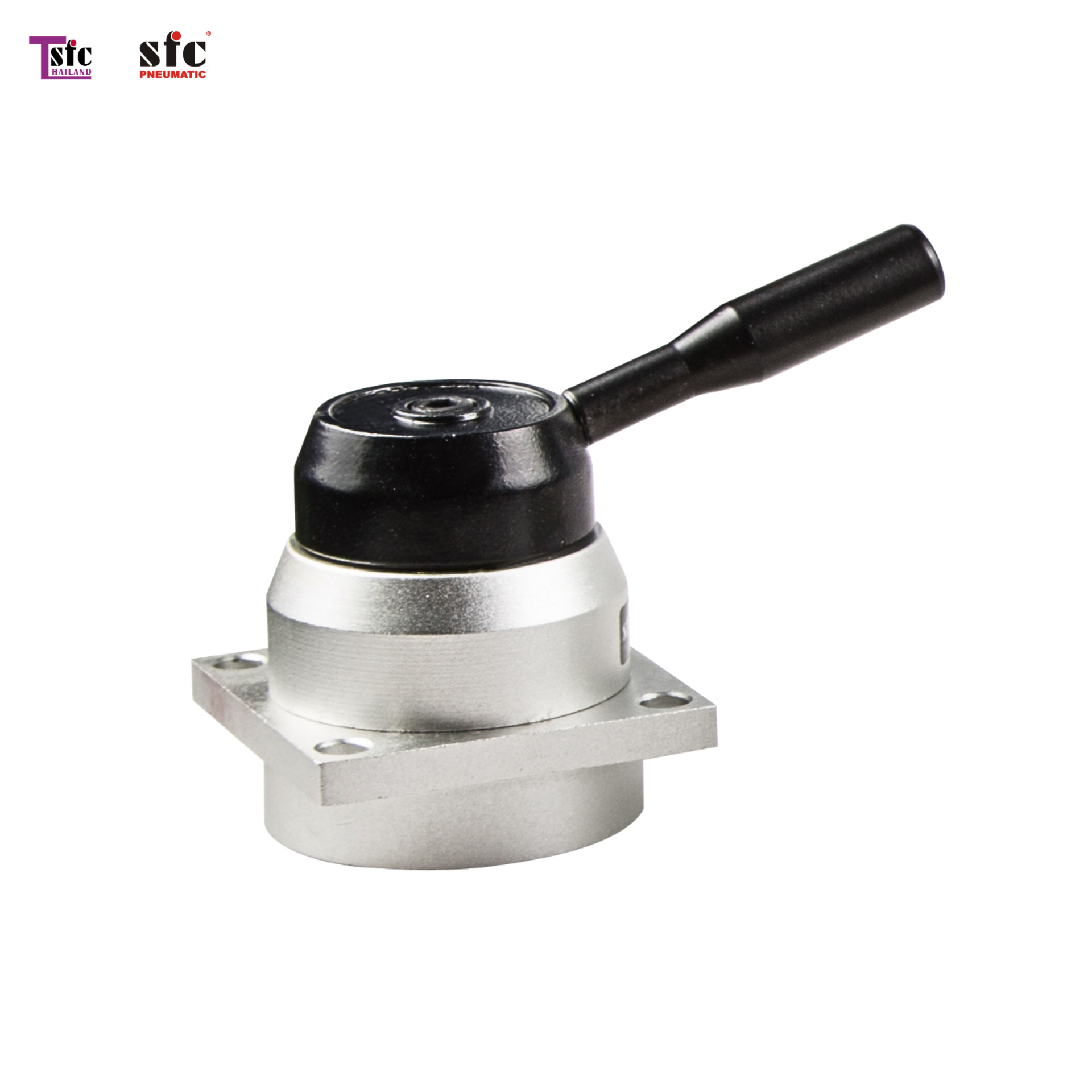

ROTARY LEVER VALVE จำนวนผู้เข้าชม: 0 ครั้ง
คุณสมบัติ,รายละเอียดอื่นๆ: ROTARY LEVER VALVE
| Type | Port size | Effective area | Temperature | CV Value | Valve type | Operating pressure |
| HV-02 | PT1/4 | 16mm² | -5-55°C | 0.89 | 4/3 way | 0-10kgf/cm² |
| HV-03 | PT3/8 | 16mm² | -5-55°C | 0.89 | ||
| HV-04 | PT1/2 | 16mm² | -5-55°C | 0.89 | ||
| VH200-08 | PT1/4 | 16mm² | -5-55°C | 0.89 | 4/3 way midst closed type | 0-10kgf/cm² |
| VH200-08D | PT1/4 | 16mm² | -5-55°C | 0.89 | 4/3 way midst closed type | 0-10kgf/cm² |
| VH200-02 | PT1/4 | 16mm² | -5-55°C | 0.89 | 5/3 way midst closed type | 0-10kgf/cm² |
