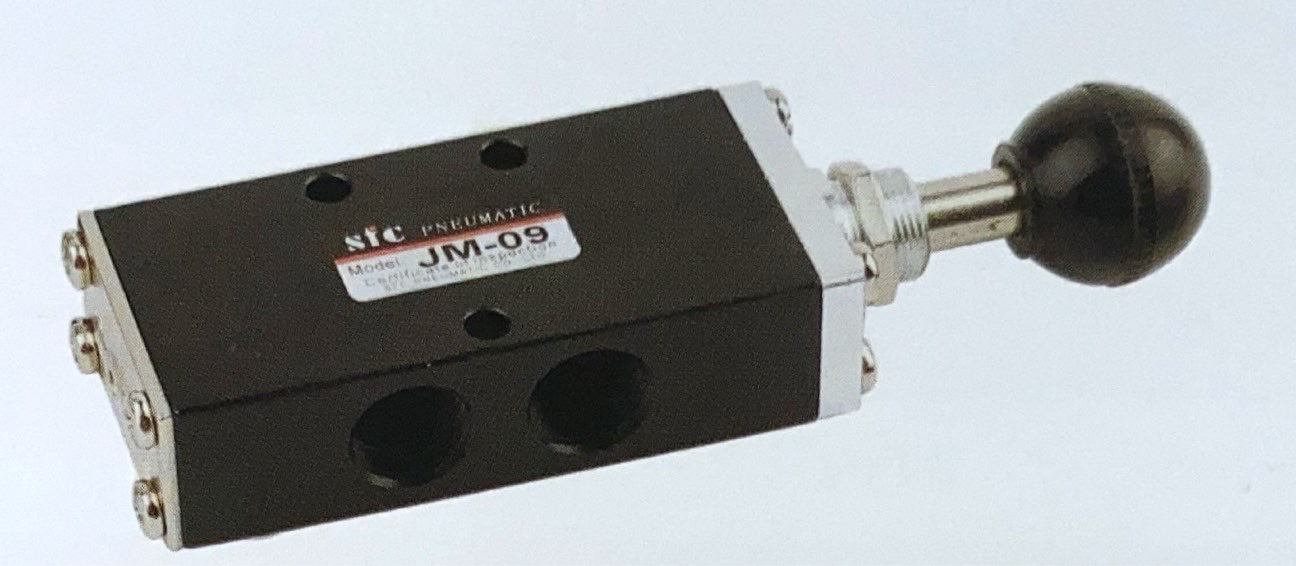

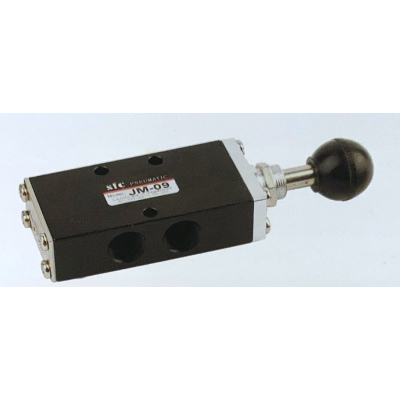

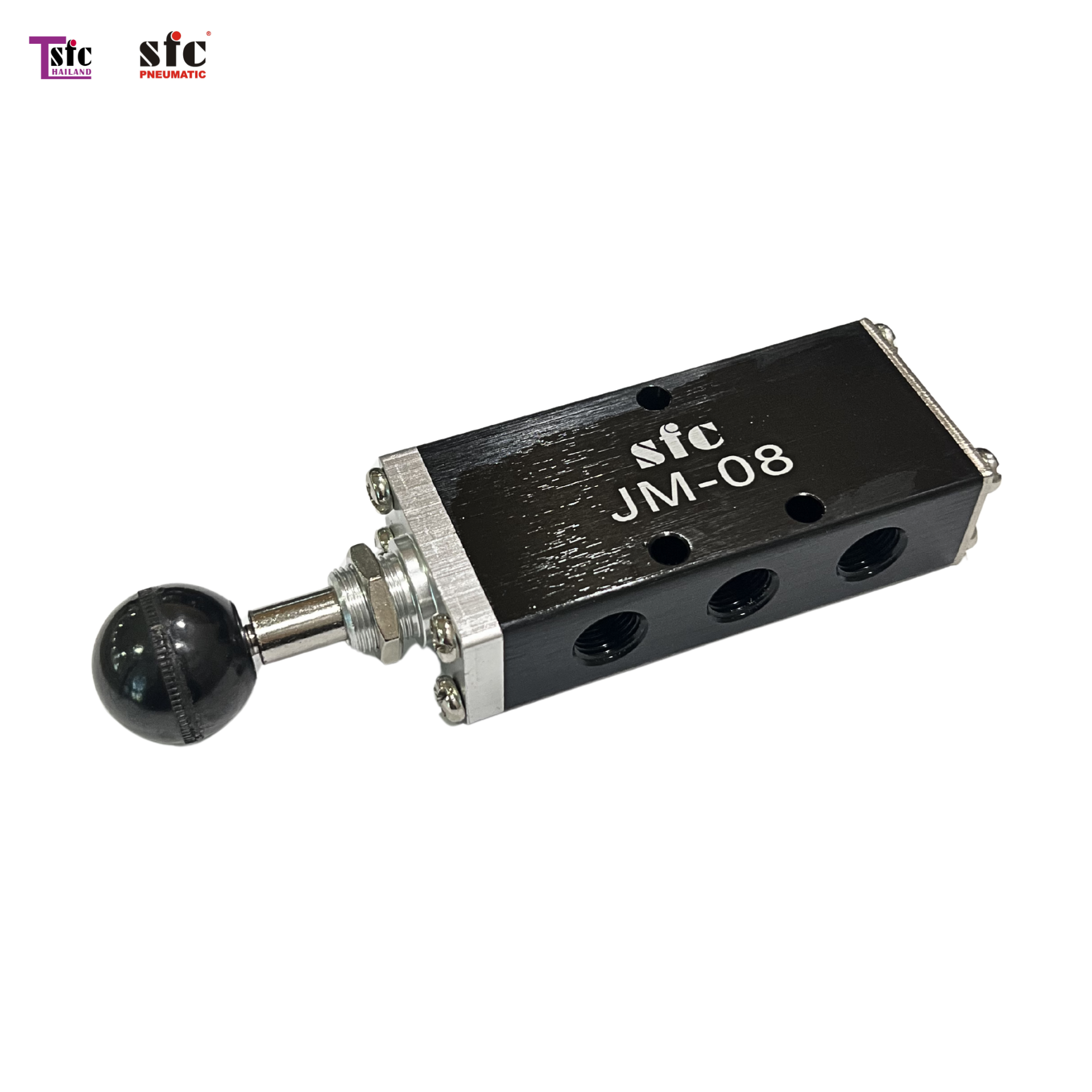

HAND DRAW VALVE JM SERIES จำนวนผู้เข้าชม: 0 ครั้ง
คุณสมบัติ,รายละเอียดอื่นๆ: HAND DRAW VALVE JM SERIES
| Type | Port size | Effective area | Temperature | CV Valve | Control type | Valve type | operating pressure |
| JM-08 | PT1/4 | 24mm² | -5-55°C | 1.20 | Hand return | 5/2 way | 0-10kgf/cm² |
| JM-09 | PT3/8 | 24mm² | -5-55°C | 1.20 | |||
| JM-08A | PT1/4 | 24mm² | -5-55°C | 1.20 | Self return | ||
| JM-09A | PT3/8 | 24mm² | -5-55°C | 1.20 |
