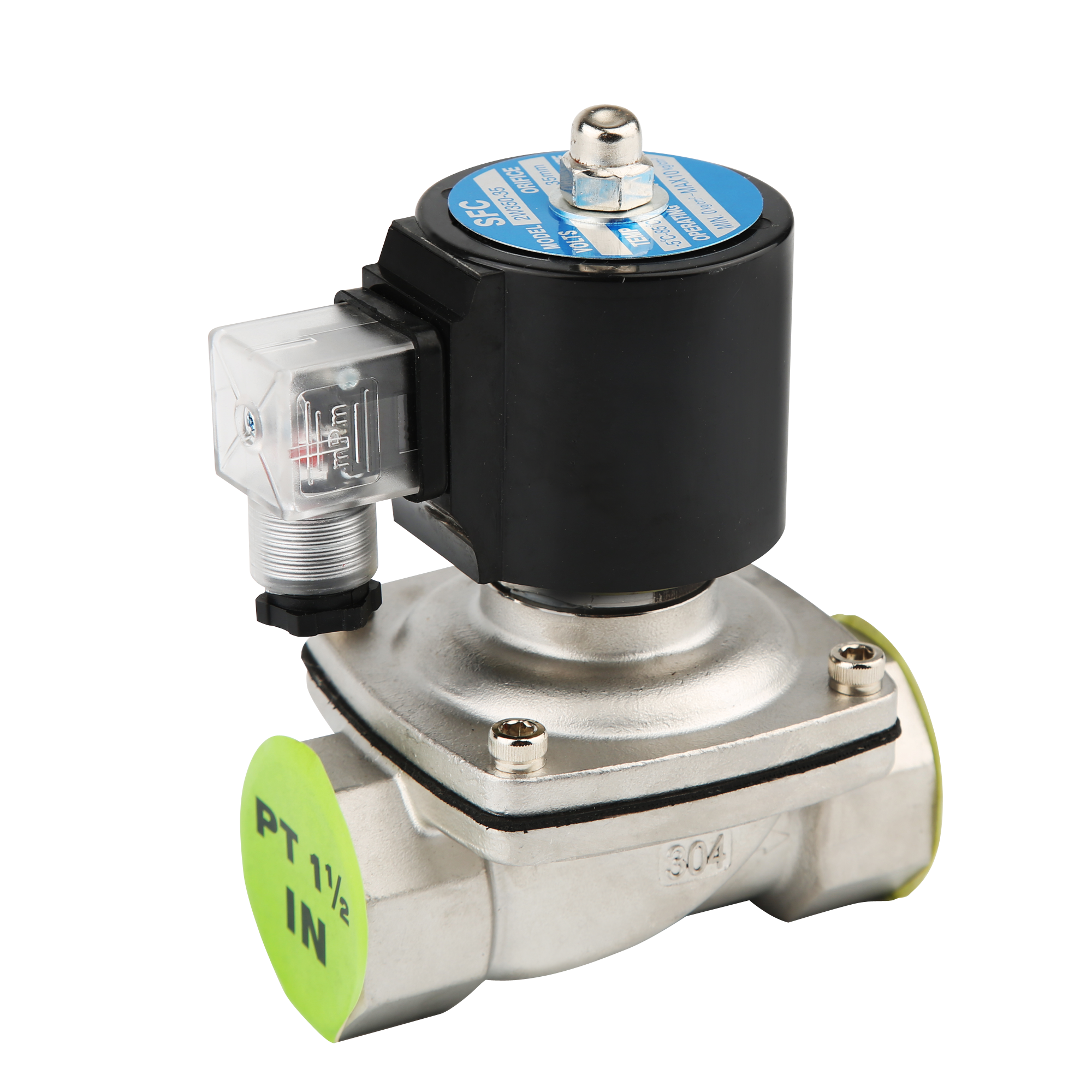

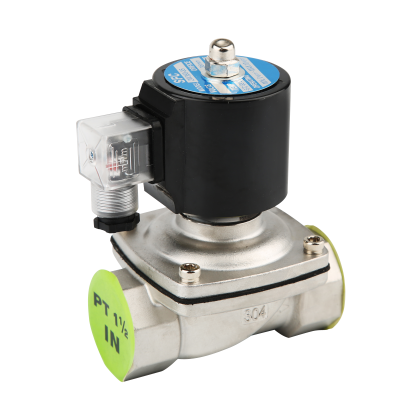

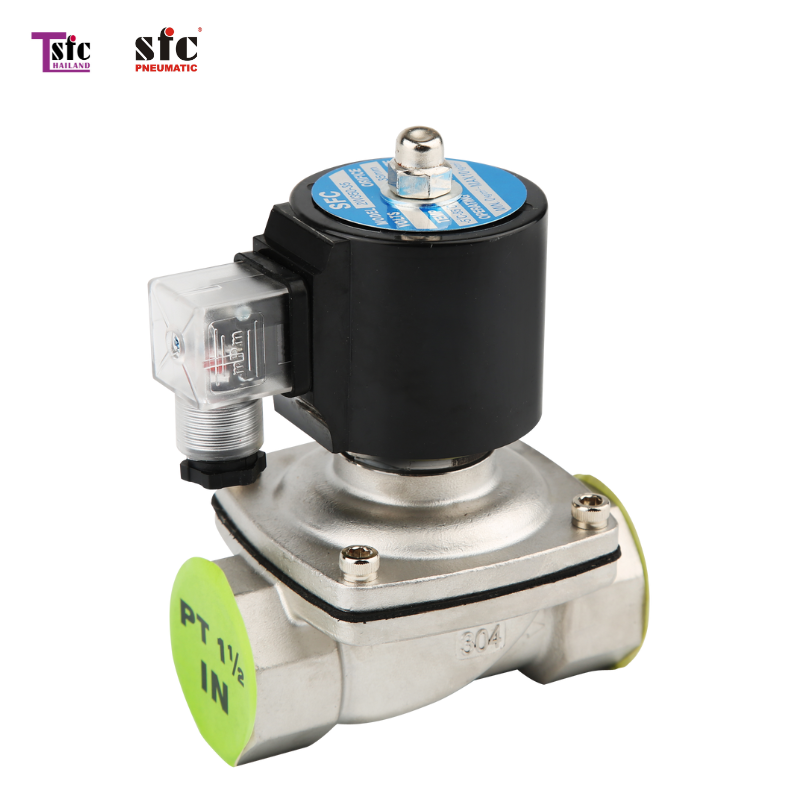

WATER-POOF SOLENOID VALVE (STAINLESS STEEL) (NC) จำนวนผู้เข้าชม: 0 ครั้ง
คุณสมบัติ,รายละเอียดอื่นๆ: WATER-POOF SOLENOID VALVE (STAINLESS STEEL) (NC)
| Type | Port size | Effective area | Temperature | CV value | Power Consumption | Working Medium | Pressure Range | Valtage |
| 2WBA025-06 | PT1/8 | 2.5mm | -5-85°C | 0.23 | 15VA | Weak Water acid alkali | 0-9 kgf/cm² | DC12V DC24V AC24V AC110V AC220V |
| 2WBA025-08 | PT1/4 | 2.5mm | -5-85°C | 0.23 | 15VA | |||
| 2WBA040-10 | PT3/8 | 4.0mm | -5-85°C | 0.60 | 22VA | |||
| 2WBA160-10 | PT3/8 | 16mm | -5-85°C | 4.80 | 22VA | |||
| 2WBA160-15 | PT1/2 | 16mm | -5-85°C | 4.80 | 22VA | Operation | ||
| 2WBA200-20 | PT3/4 | 20mm | -5-85°C | 7.60 | 22VA | |||
| 2WBA250-25 | PT1 | 25mm | -5-85°C | 12 | 22VA | 2/2 way Normally closed | ||
| 2WBA350-35 | PT1 1/4 | 35mm | -5-85°C | 24 | 22VA | |||
| 2WBA400-40 | PT1 1/2 | 40mm | -5-85°C | 29 | 22VA | |||
| 2WBA500-50 | PT2 | 50mm | -5-85°C | 48 | 22VA |
