SOLENOLD VALVE SFC SERIES จำนวนผู้เข้าชม: 0 ครั้ง

- รหัสสินค้า:SFC
- ชื่อสินค้า:

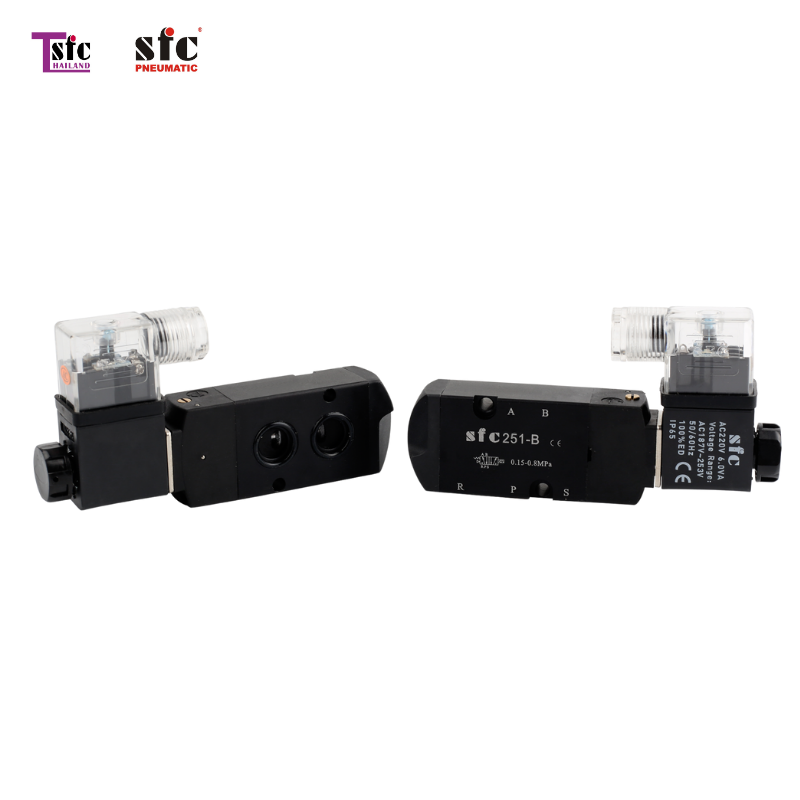

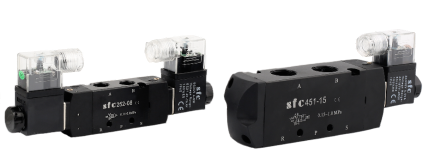

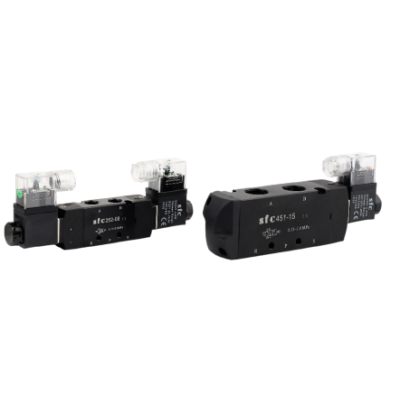

  SOLENOLD VALVE SFC SERIES
- หมวดสินค้า:Solenoid Valves

คุณสมบัติ,รายละเอียดอื่นๆ: SOLENOLD VALVE SFC SERIES

Type	SFC Same type	Port size	Position&coil	Working Pressure	Max. Pressure Resisance	Working Temperature	Insulation & Protection Class	Standard Voltage
SFC151-M5	4V110-M5	M5	5/2 way type Single-Coil Double-Position	0.15 - 0.8 MPa	12MPa	5-60°C	F Class. IP 65	DC 12V DC24V AC24V 50/60Hz AC110V 50/60Hz AC220v 50/60Hz
SFC151-06	4V110-06	1/8"
SFC251-06	4V210-06	1/8"
SFC251-08	4V210-08	1/4"
SFC351-08	4V310-08	1/4"
SFC351-10	4V310-10	3/8"
SFC451-10	4V410-10	3/8"
SFC451-15	4V410-15	1/2"
SFC152-06	4V120-06	1/8"	5/2 way type Double-Coil Double-Position
SFC252-06	4V220-06	1/8"
SFC252-08	4V220-08	1/4"
SFC352-08	4V320-08	1/4"
SFC352-10	4V320-10	3/8"
SFC452-10	4V420-10	3/8"
SFC452-15	4V420-15	1/2"
SFC152C/E/P-06	4V130C/E/P-06	1/8"	5/2 way type Double-Coil
SFC253C/E/P-06	4V230C/E/P-06	1/8"
SFC253C/E/P-08	4V230C/E/P-08	1/4"
SFC353C/E/P-08	4V330C/E/P-08	1/4"
SFC353C/E/P-10	4V330C/E/P-10	3/8"
SFC453C/E/P-10	4V430C/E/P-10	3/8"
SFC453C/E/P-15	4V430C/E/P-15	1/2"
