GAS CONTROLLED DRAIN VALVE จำนวนผู้เข้าชม: 0 ครั้ง

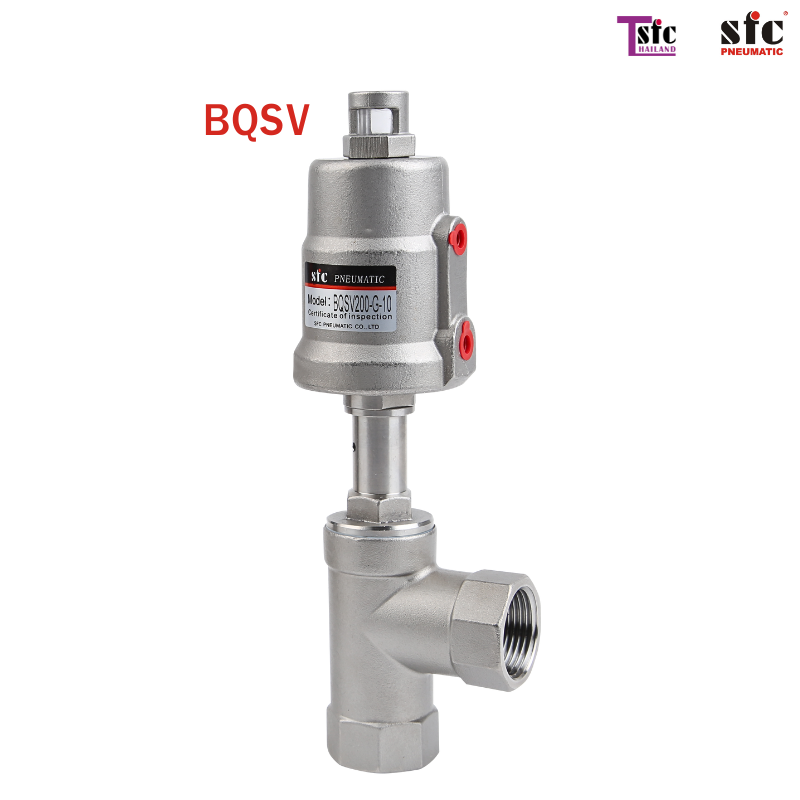

- รหัสสินค้า:BQSV
- ชื่อสินค้า:

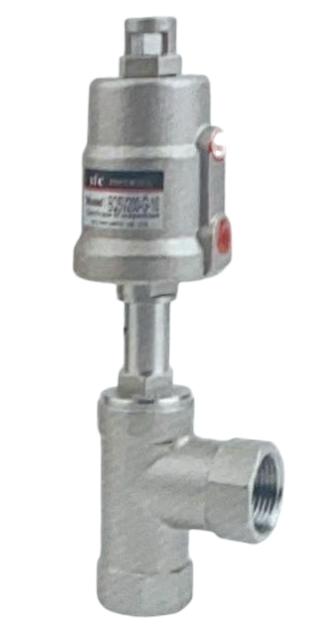

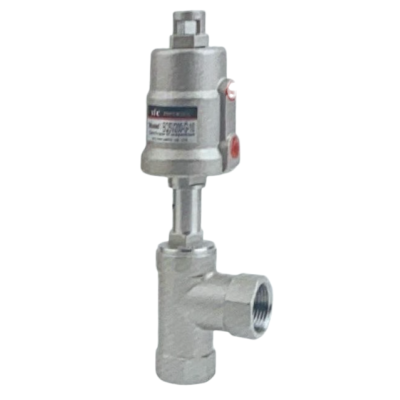

  GAS CONTROLLED DRAIN VALVE
- หมวดสินค้า:Angle Seat Valve

คุณสมบัติ,รายละเอียดอื่นๆ: GAS CONTROLLED DRAIN VALVE

Model	QSV200-G-04	QSV200-G-06	QSV200-G-10	QSV200-G-12	QSV200-G-14	QSV200-G-20
	BQSV200-G-04	BQSV200-G-06	BQSV200-G-10	BQSV200-G-12	BQSV200-G-14	BQSV200-G-20
Effective area	DN15	DN20	DN25	DN32	DN40	DN50
Control function	Two position two ventilate drain valve
Body material	Stainless steel 304
Nominal pressure	PN16 (valve body)
Movement mode	Piston direct acting
Fluid medium	Water,Alcohol,Oil,Fuel,Hydraulic Fluid,Alkaline Solution,Salt Solution,Acidic Solution,Hot Water,Steam
Viscosity	Maximum 600 mm2/s
Fluid temperature	-10-120°C
Environmental temperature resistance	PA:-10-60°C Stainless steel / Aluminum alloy -10-140°C
Install	It can be installed according to need, soti is better for the executive organization to face up.
Control media	Neutral gases, air
Seat Tightness	PTFE/FPM/NBR
Piston seal	FPM/NBR
Minimum pilot pressure (bar)	4.5	4.5	4.5	5.0	5.2	5.2
Pipe Size	G1/2	G3/4	G1	G1 1/4	G1 1/2	G2
Path	13	18	24	31	35	45
