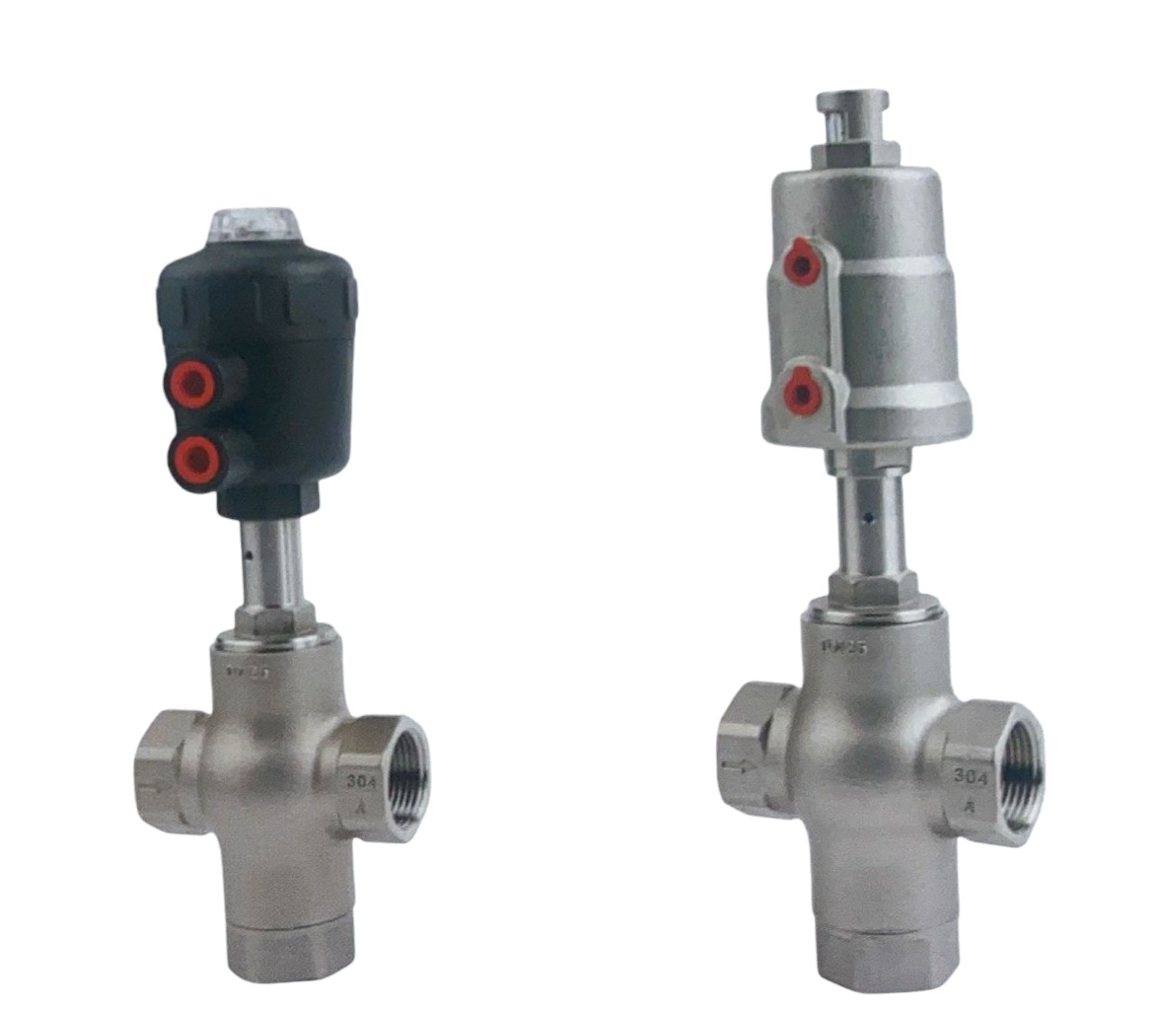

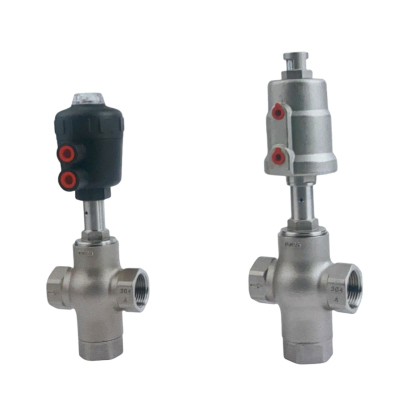

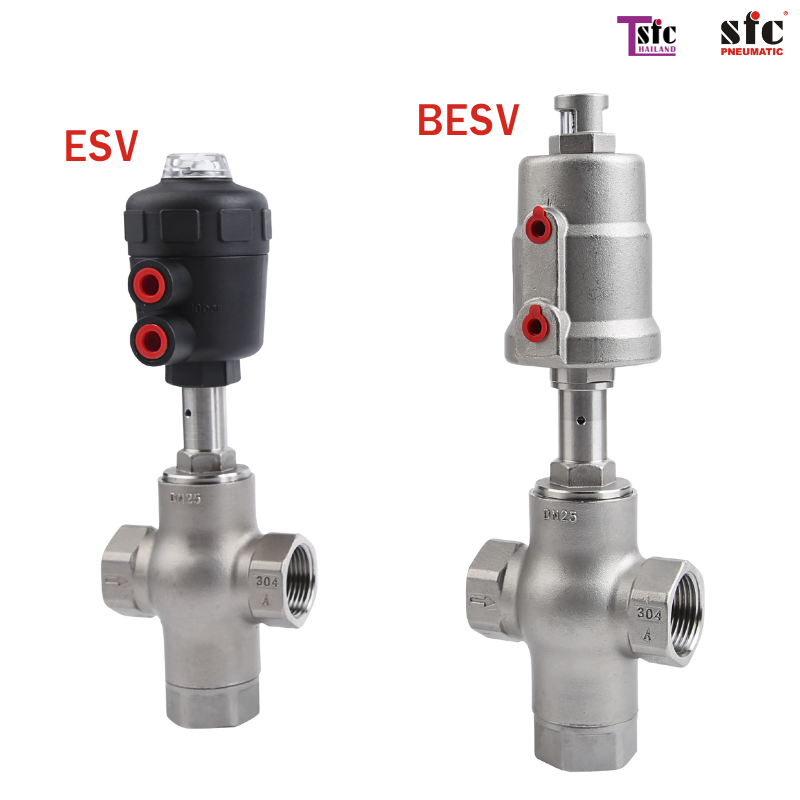

AIR CONTROLLED THREE WAY SEAT VALVE จำนวนผู้เข้าชม: 0 ครั้ง
คุณสมบัติ,รายละเอียดอื่นๆ: AIR CONTROLLED THREE WAY SEAT VALVE
| Model | TSV200-G-04 | TSV200-G-06 | TSV200-G-10 | TSV200-G-12 | TSV200-G-14 | TSV200-G-20 | |
| TSV200-G-04-NO | TSV200-G-06-NO | TSV200-G-10-NO | TSV200-G-12-NO | TSV200-G-14-NO | TSV200-G-20-NO | ||
| Effective area | DN15 | DN20 | DN25 | DN32 | DN40 | DN50 | |
| Control function | Two bit three usually closed (NC) (port 1) | ||||||
| Body material | Stainless steel 304/316/316L | ||||||
| Nominal pressure | PN16 (valve body) | ||||||
| Movement mode | Piston direct acting | ||||||
| Fluid medium | Water,Alcohol,Oil,Fuel,Hydraulic Fluid,Alkaline Solution,Salt Solution,Acidic Solution,Hot Water,Steam | ||||||
| Fluid temperature | -10-180°C | ||||||
| Install | It can be installed according to need, soti is better for the executive organization to face up. | ||||||
| Control media | Neutral gases, air | ||||||
| Seat Tightness | PTFE/FPM/NBR | ||||||
| Joint seal | PTFE/FPM | ||||||
| Piston seal | FPM/NBR | ||||||
| Minimum pilot pressure (bar) | 4.5 | 4.5 | 4.5 | 5.0 | 5.2 | 5.2 | |
| Pipe Size | G1/2 | G3/4 | G1 | G1 1/4 | G1 1/2 | G2 | |
| Path | 13 | 18 | 24 | 31 | 35 | 45 | |
| Kv (m3/h) | 1→2 | 7 | 9 | 16 | 30 | 35 | 50 |
| 2→3 | 5 | 6 | 11 | 21 | 22 | 35 | |
