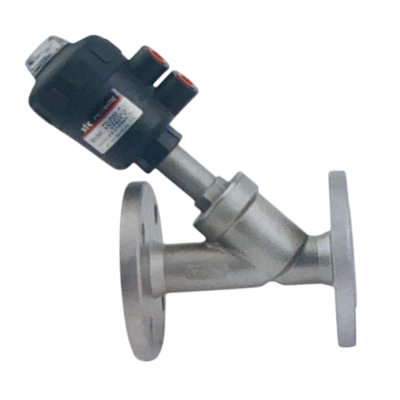

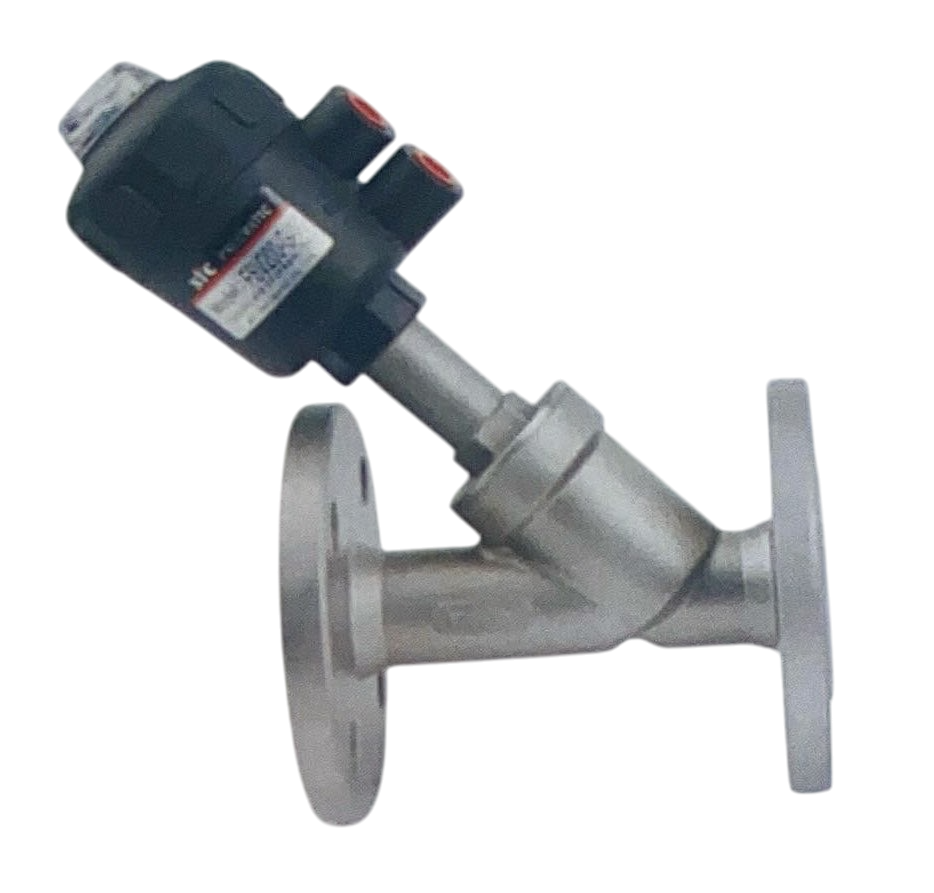

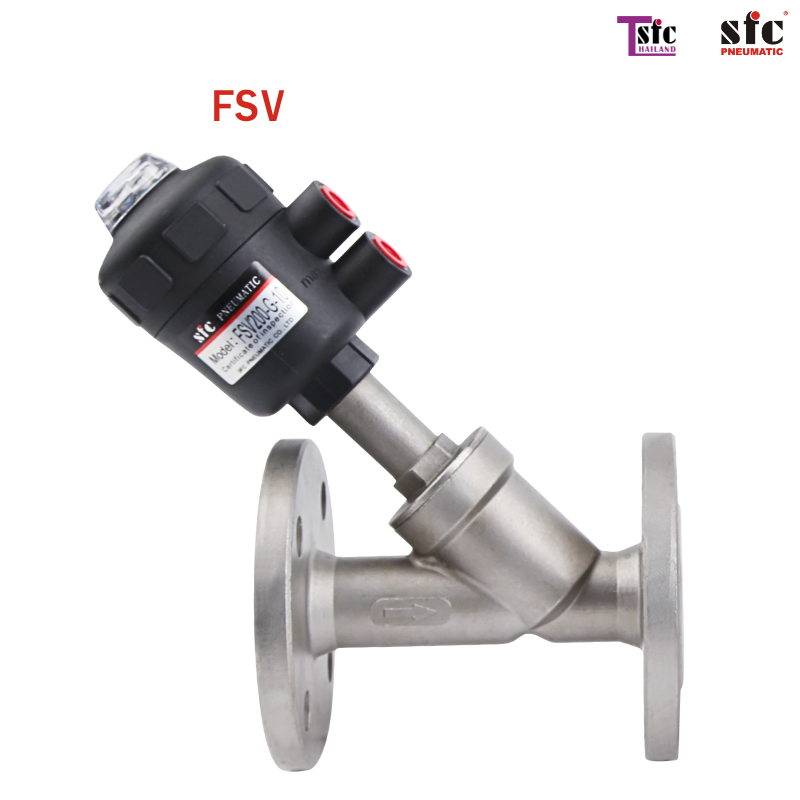

FLANGE CONNECTION GAS ANGLE SEAT VALVE จำนวนผู้เข้าชม: 0 ครั้ง

- รหัสสินค้า:FSV
- ชื่อสินค้า:
  FLANGE CONNECTION GAS ANGLE SEAT VALVE
- หมวดสินค้า:Angle Seat Valve

คุณสมบัติ,รายละเอียดอื่นๆ: FLANGE CONNECTION GAS ANGLE SEAT VALVE

Model		FSV200-G-04	FSV200-G-06	FSV200-G-10	FSV200-G-12	FSV200-G-14	FSV200-G-20	FSV200-G-24	FSV200-G-30	FSV200-G-40
Model		BFSV200-G-04	BFSV200-G-06	BFSV200-G-10	BFSV200-G-12	BFSV200-G-14	BFSV200-G-20	BFSV200-G-24	BFSV200-G-30	BFSV200-G-40
Effective area		DN15	DN20	DN25	DN32	DN40	DN50	DN65	DN80	DN100
Valve / actuator material		S.S304 316/PA
Seat Tightness		PTFE/FPM
Joint seal		PTFE/FPM
Valve core seal		PTFE/FPM
Sealing material temperature resistance	PTFE	-10-200°C
Sealing material temperature resistance	FPM	-10-100°C
Install		Flow direction below valve seat / valve seat
Movement mode		Piston direct acting
Medium		Air,Water,Oil,Stram,and any neutral gas.
Pipe Size		G1/2	G3/4	G1	G1 1/4	G1 1/2	G2	G2 1/2	G3	G4
Path		13	20	25	32	40	50	65	80	100
Kv (m3/h)		4.2	8	19	27.5	42	55	90	115	200
Use pressure range MPa		0-1.6	0-1.6	0-1.6	0-1.6	0-1.6	0-1.6	0-1.6	0-1.6	0-1.6
Minimum control pressure MPa		0.3	0.35	0.35	0.35	0.35	0.35	0.35	0.4	0.4
Actuator size selection mm		40/50	50	50/63	63	63	63/90	90	125	125
