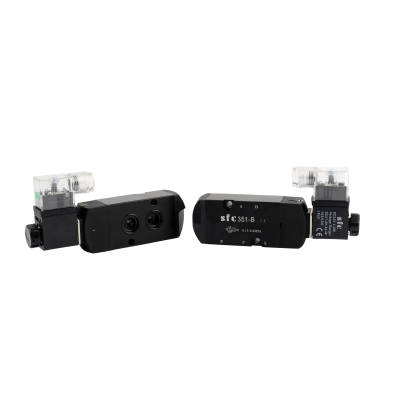

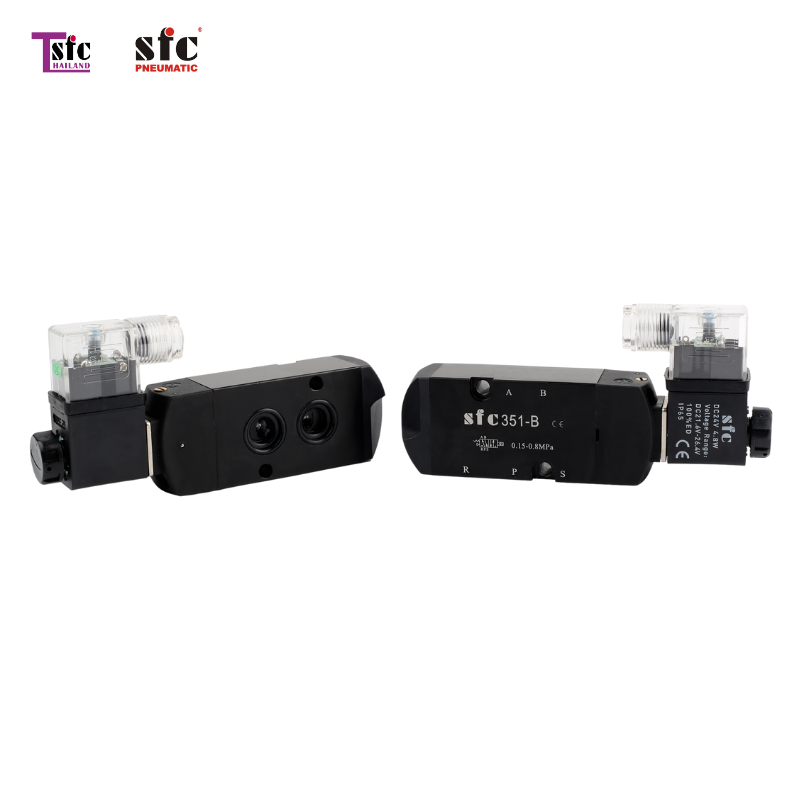

SOLENOLD VALVE SFC-B SERIES (NAMUR TYPE) จำนวนผู้เข้าชม: 0 ครั้ง
คุณสมบัติ,รายละเอียดอื่นๆ: SOLENOLD VALVE SFC-B SERIES (NAMUR TYPE)
| Type | SFC Same type | Port size | Position&coil | Working Pressure | Max. Pressure Resisance | Working Temperature | Insulation & Protection Class | Standard Voltage |
| SFC151-06 | 4V110-06 | 1/8" | 5/2 way type Single-Coil Double-Position | 0.15 - 0.8 MPa | 12MPa | 5-60°C | F Class. IP 65 | DC 12V DC24V AC24V AC110V AC220v |
| SFC251-08 | 4V210-08 | 1/4" | ||||||
| SFC351-08 | 4V310-08 | 1/4" | ||||||
| SFC351-10 | 4V310-10 | 3/8" | ||||||
| SFC451-15 | 4V410-15 | 1/2" |
