SOLENOID VALVE 2WB SERIES BIG FLOW จำนวนผู้เข้าชม: 0 ครั้ง

- รหัสสินค้า:4V510/610
- ชื่อสินค้า:

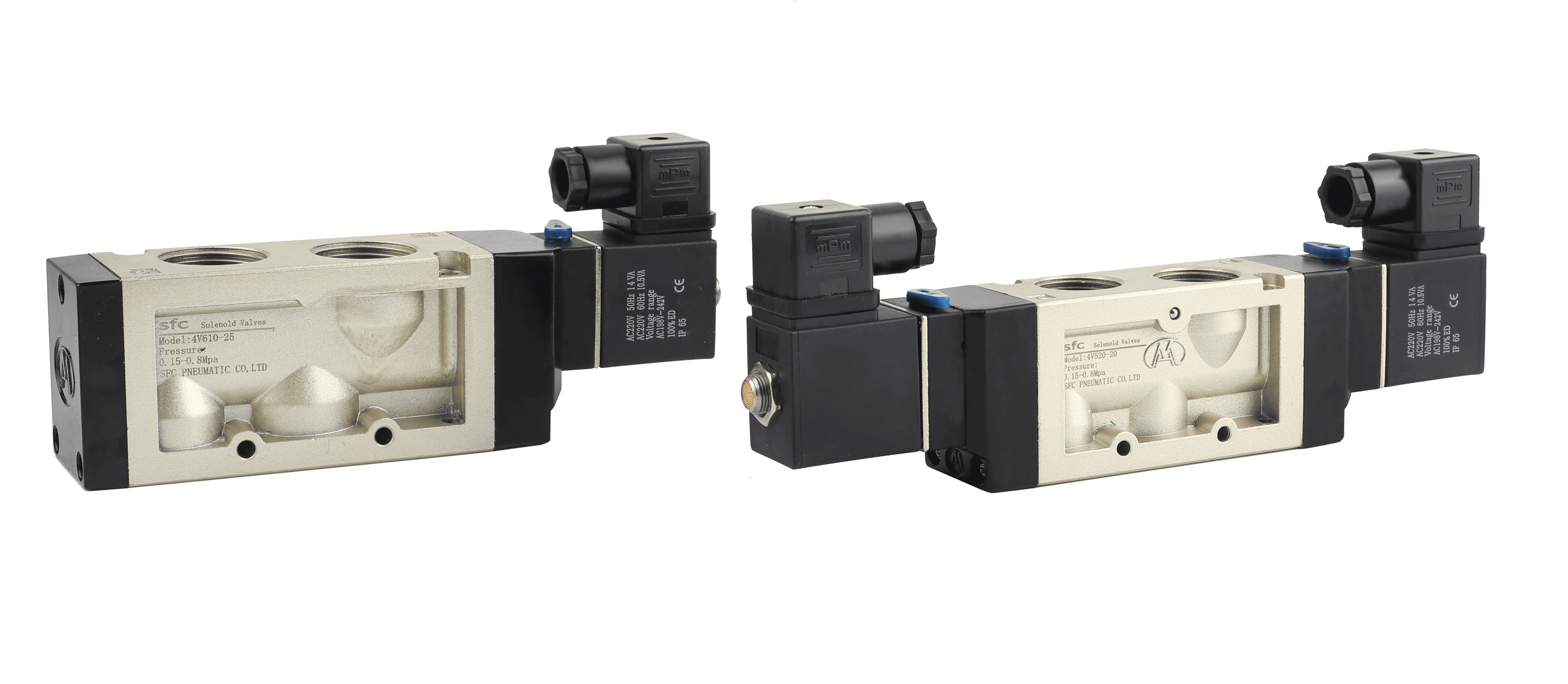

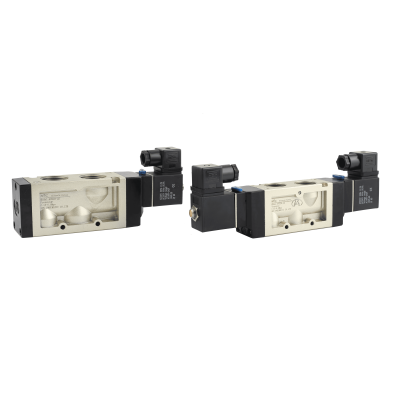

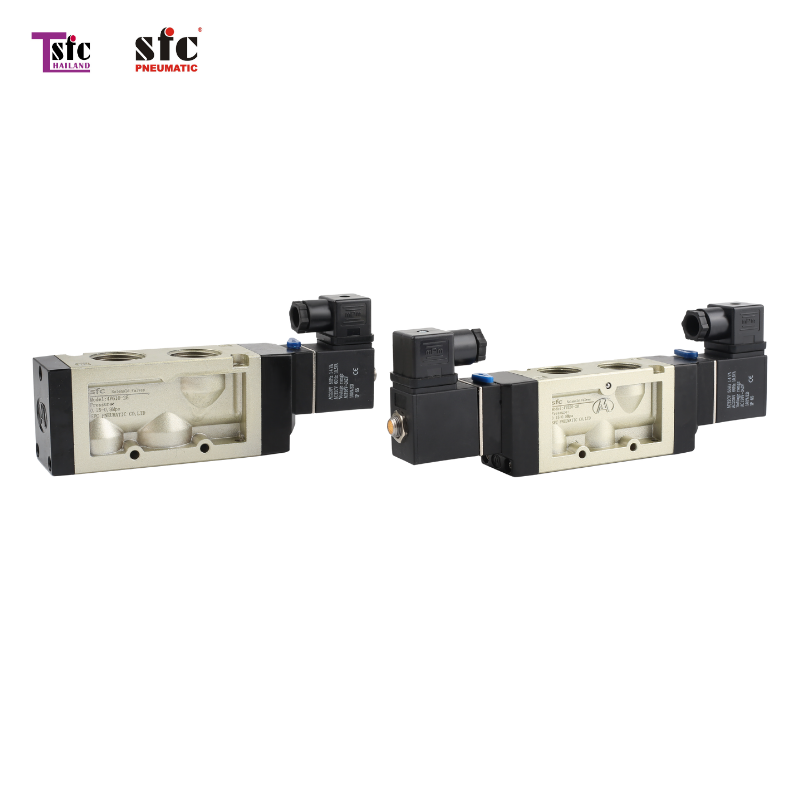

  SOLENOID VALVE 2WB SERIES BIG FLOW
- หมวดสินค้า:Solenoid Valves

คุณสมบัติ,รายละเอียดอื่นๆ: SOLENOID VALVE 2WB SERIES BIG FLOW

Type	Port size	Position&coil	Sectional Area	Thread Pipe	Operating Temperature (°C)	Working Medium	Standard Voltage
4V510-20	3/4"	5/2 way type Single-Coil Double-Position	95mm² (Cv=5.0)	Air Inlet Air Outlet =3/4" Air Exhaust =1/2"	-5-60°C	40 Micron Filtered Air	DC 12 V DC 24 V AC 24 V 50/60Hz AC 110 V 50/60Hz AC 220 V 50/60Hz
4V520-20	3/4"	5/2 way type Double-Coil Double-Position	95mm² (Cv=5.0)
4V530C-20	3/4"	5/3 way type Double-Coil Three-Position Close Type	70mm² (Cv=4.0)
4V530E-20	3/4"	5/3 way type Double-Coil Three-Position Exhaust Type
4V530P-20	3/4"	5/3 way type Double-Coil Three-Position Pressure Type
4V610-25	1"	5/2 way type Single-Coil Double-Position	110mm² (Cv=6.0)	Air Inlet Air Outlet =3/4" Air Exhaust =1/2"
4V620-25	1"	5/2 way type Double-Coil Double-Position	110mm² (Cv=6.0)
4V630C-25	1"	5/3 way type Double-Coil Three-Position Close Type	81mm² (Cv=4.5)
4V630E-25	1"	5/3 way type Double-Coil Three-Position Exhaust Type
4V630P-25	1"	5/3 way type Double-Coil Three-Position Pressure Type
