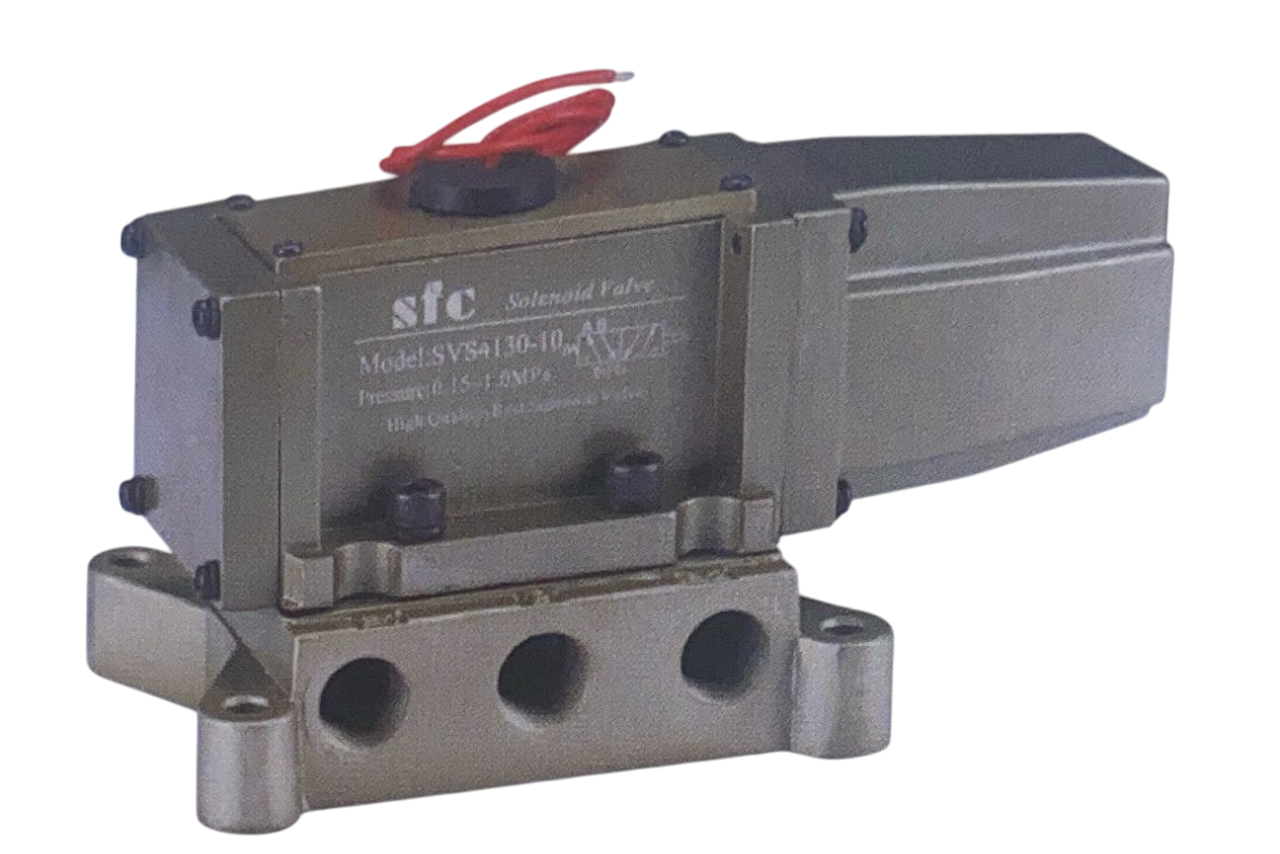

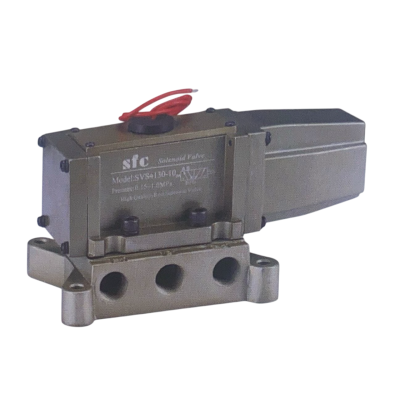

HIGHT FLOW SOLENOLD VALVE จำนวนผู้เข้าชม: 0 ครั้ง
คุณสมบัติ,รายละเอียดอื่นๆ: HIGHT FLOW SOLENOLD VALVE
| Model | Port size | Effective area | Operatng temperature Range | CV Value | Coil power | Coil&Position | Operating pressure | Valtage |
| SVS4130-10 | PT3/8 | 40mm² | -5-55°C | 6.4 | 3VA | 5/2 way Single electrical control | 0-9 kgf/cm² | AC110V AC220V |
| SVS4130-15 | PT1/2 | 42mm² | -5-55°C | 11 | 3VA | |||
| SVS4230-10 | PT3/8 | 40mm² | -5-55°C | 6.4 | 3VA | 5/2 way Single electrical control | ||
| SVS4230-15 | PT1/2 | 42mm² | -5-55°C | 11 | 3VA |
