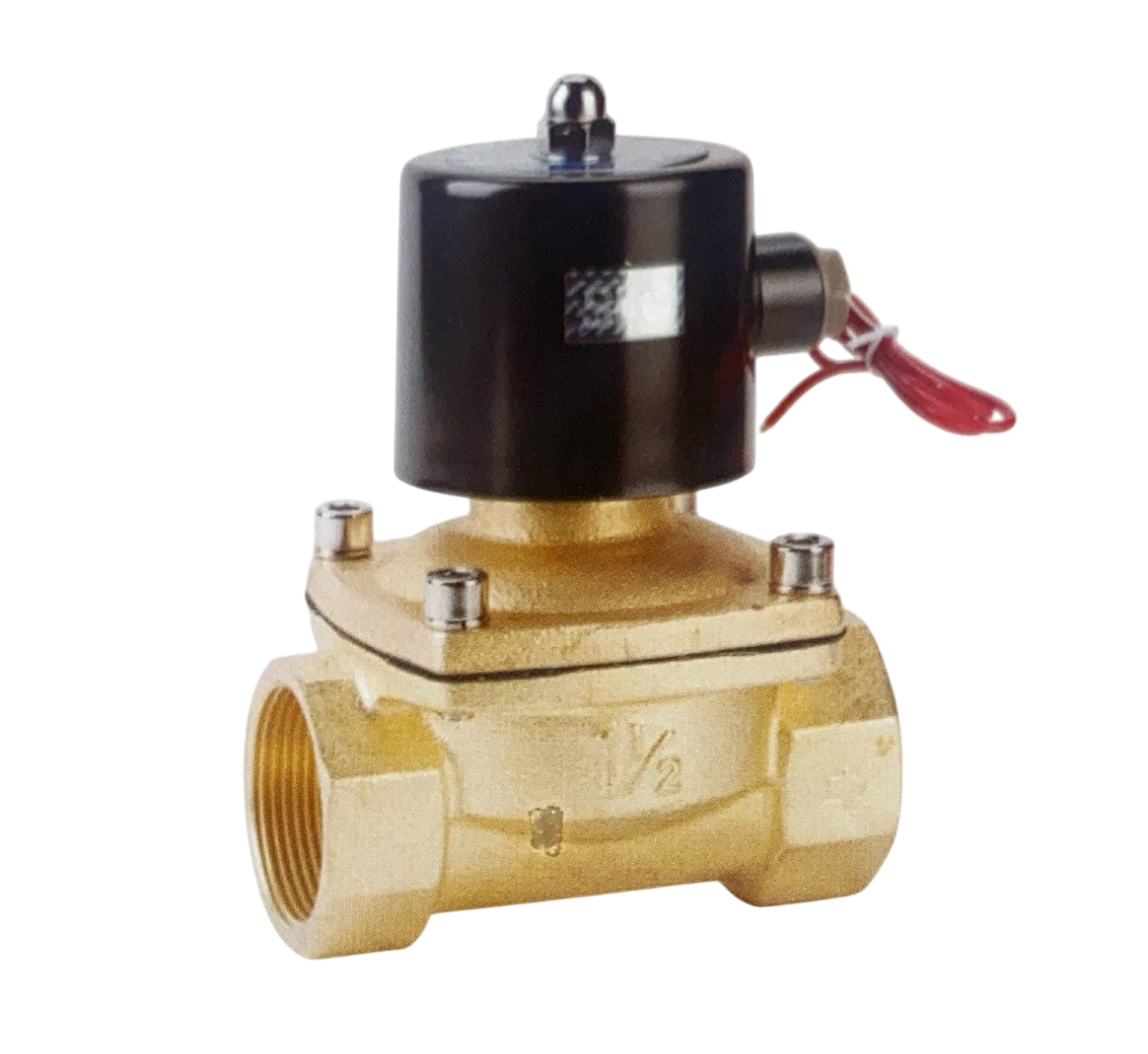

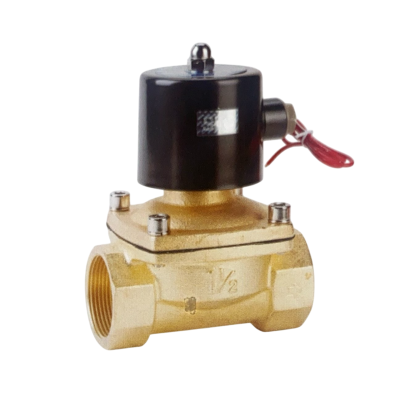

HIGH TIMPERATURE SOLENOLD VALVE (NC) จำนวนผู้เข้าชม: 0 ครั้ง
คุณสมบัติ,รายละเอียดอื่นๆ: HIGH TIMPERATURE SOLENOLD VALVE (NC)
| Type | Port size | Effective area | CV value | Material of Oil Seal | Temperature | Working Medium | Operating pressure | Valtage | Operation |
| 2WH160-15 | PT1/2 | 16mm | 4.80 | VITON | -5-150°C | Air Water Oil Gas | 0-1MPa | DC12V DC24V AC24V AC110V AC220V | 2/2 way Normally closed |
| 2WH200-20 | PT3/4 | 20mm | 7.60 | ||||||
| 2WH250-25 | PT1 | 25mm | 12 | ||||||
| 2WH350-35 | PT1 1/4 | 35mm | 24 | ||||||
| 2WH400-40 | PT1 1/2 | 40mm | 29 | ||||||
| 2WH500-50 | PT2 | 50mm | 48 |
