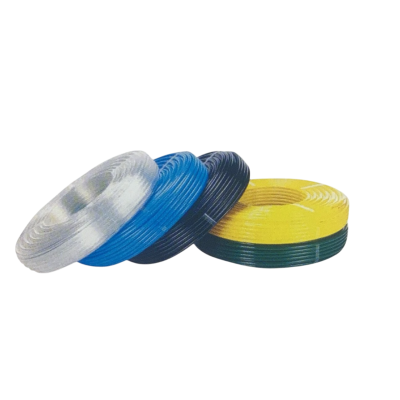

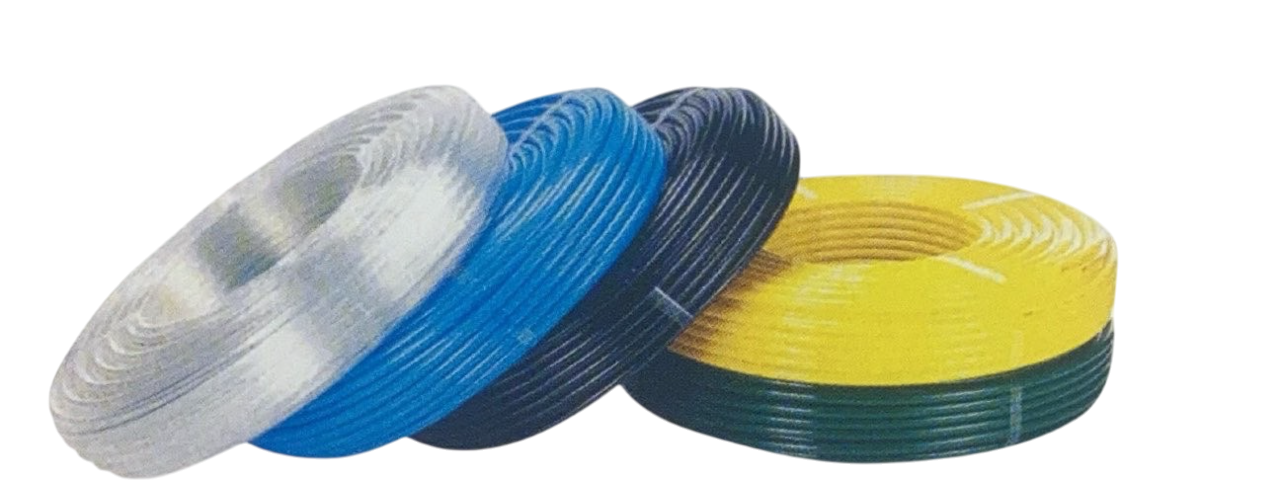

สายลม โพลีเอรีเทน (PE) จำนวนผู้เข้าชม: 0 ครั้ง
คุณสมบัติ,รายละเอียดอื่นๆ: สายลม โพลีเอรีเทน (PE)
| Model | O.D. | I.D. | Length | Working pressure | Burst pressure | Bend Radius | Operating temp. range | Color |
| PE 2.5X4 | 4mm | 2.5mm | 200M | ≼10Bar | ≼13Bar | 10mm | -20°C |
BK:Black WE:White |
| PE 4X6 | 6mm | 4mm | 100M | ≼10Bar | ≼13Bar | 15mm | ||
| PE 6X8 | 8mm | 6mm | 100M | ≼10Bar | ≼13Bar | 15mm | ||
| PE 7.5X10 | 10mm | 7.5mm | 100M | ≼10Bar | ≼13Bar | 20mm | ||
| PE 9X12 | 12mm | 9mm | 100M | ≼10Bar | ≼13Bar | 20mm | ||
| PE 1/4" | 6.35mm | 4.57mm | 100M | ≼10Bar | ≼13Bar | 25mm | ||
| PE 3/8" | 9.53mm | 7mm | 100M | ≼10Bar | ≼13Bar | 40mm | ||
| PE 1/2" | 12.7mm | 9.56mm | 100M | ≼10Bar | ≼13Bar | 40mm |
