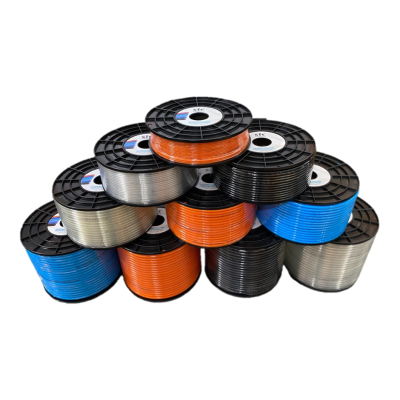

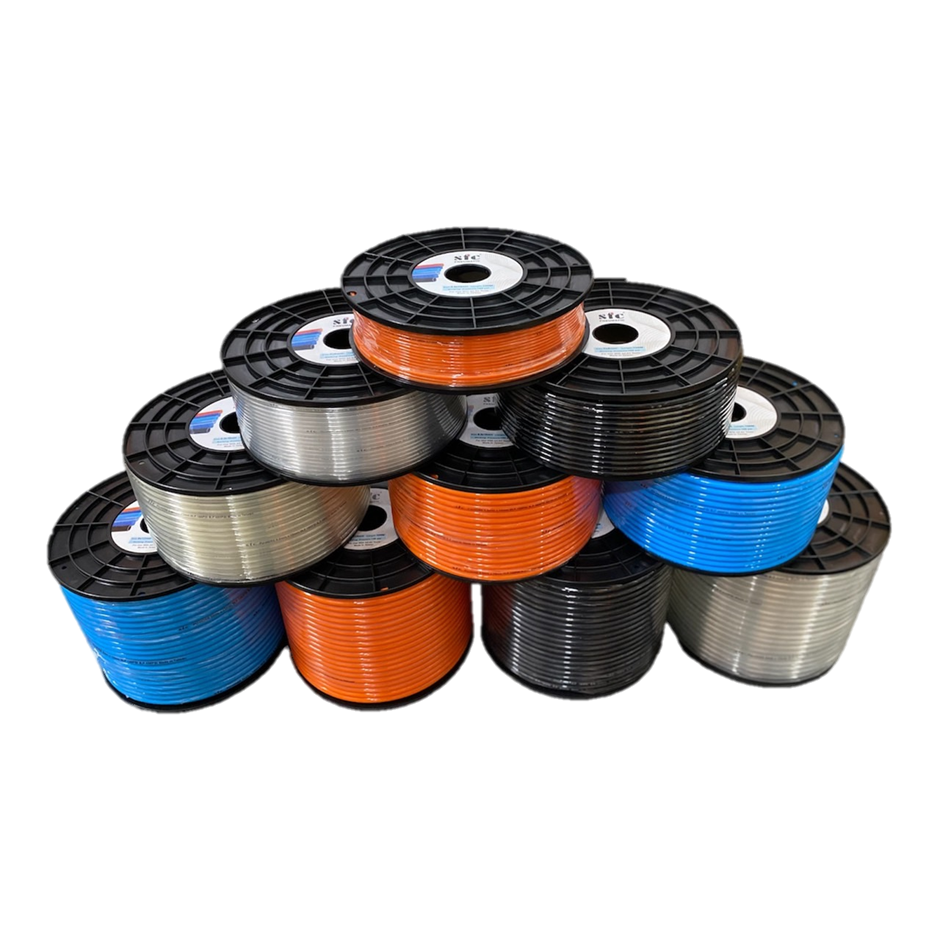

สายลม PU จำนวนผู้เข้าชม: 0 ครั้ง
คุณสมบัติ,รายละเอียดอื่นๆ: สายลม PU
| Model | O.D. | I.D. | Length | Working pressure | Burst pressure | Bend Radius | Operating temp. range | Color |
| PU-2.5X4 | 4mm | 2.5mm | 200M | ≼12Bar | ≼16Bar | 10mm | -20°C |
BE:Blue BK:Black OE:Orange NE:Nature |
| PU-4X6 | 6mm | 4mm | 200M | ≼11Bar | ≼16Bar | 15mm | ||
| PU-5X8 | 8mm | 5mm | 100M | ≼12Bar | ≼16Bar | 20mm | ||
| PU-6.5X10 | 10mm | 6.5mm | 100M | ≼10Bar | ≼16Bar | 25mm | ||
| PU-8X12 | 12mm | 8mm | 100M | ≼10Bar | ≼16Bar | 40mm | ||
| PU-10X14 | 14mm | 10mm | 50M | ≼9Bar | ≼16Bar | 60mm | ||
| PU-12X16 | 16mm | 12mm | 50M | ≼9Bar | ≼16Bar | 80mm | ||
| PU-1/4" | 6.35mm | 4.57mm | 200M | ≼11Bar | ≼16Bar | 15mm | ||
| PU-3/8" | 9.53mm | 6.5mm | 100M | ≼10Bar | ≼16Bar | 25mm | ||
| PU-1/2" | 12.6mm | 9.6mm | 100M | ≼10Bar | ≼16Bar | 50mm |
