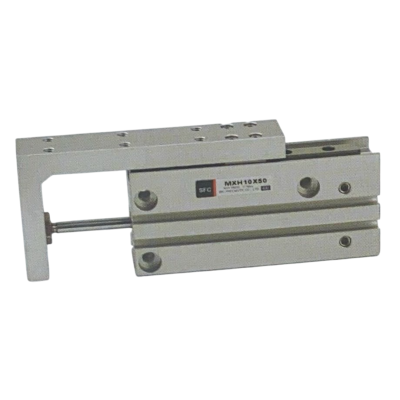

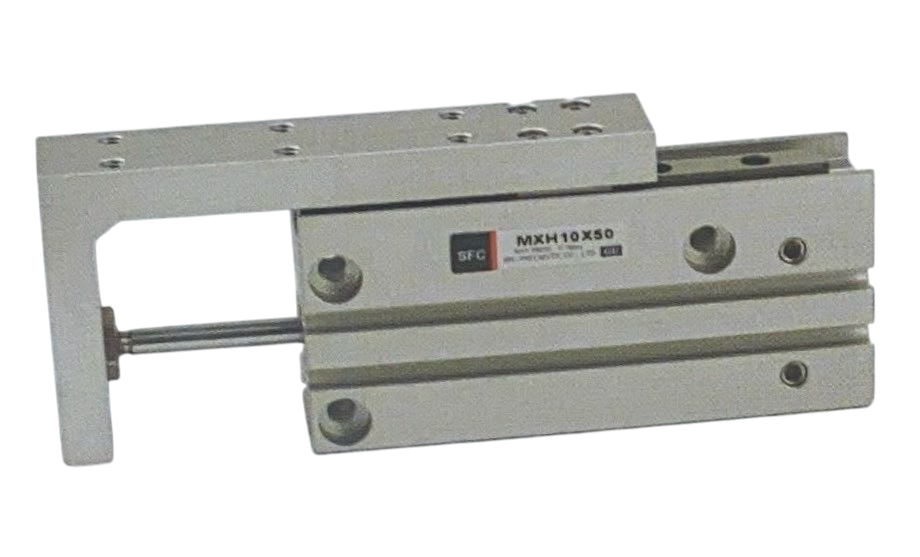

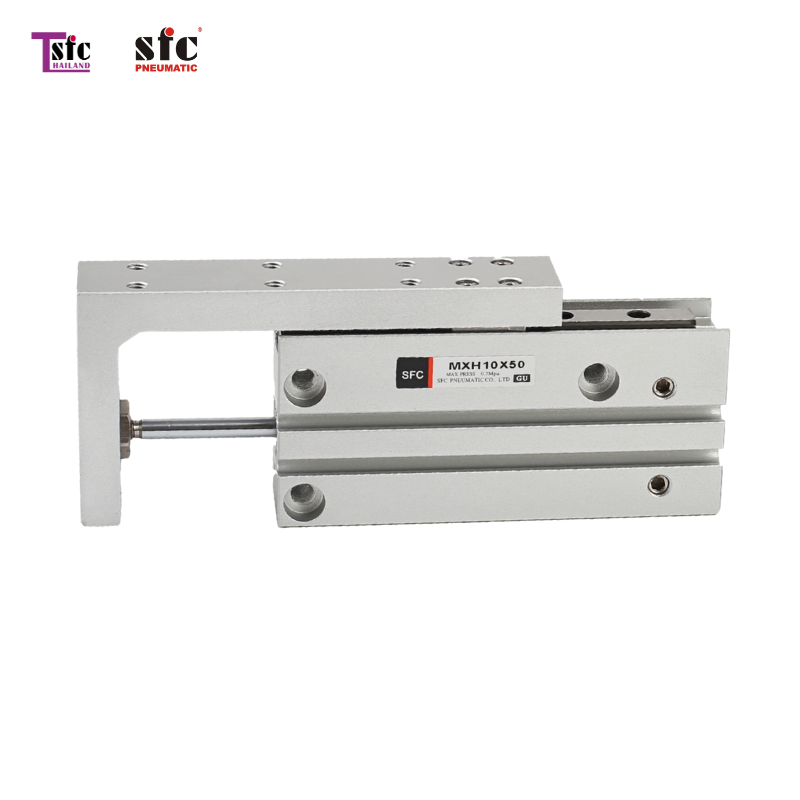

AIR CYLINDER SLIDE SERIES MXH จำนวนผู้เข้าชม: 0 ครั้ง
คุณสมบัติ,รายละเอียดอื่นๆ: AIR CYLINDER SLIDE SERIES MXH
| Bore (mm) | 6 | 10 | 16 | 20 |
| Guide bearing width | 5 | 7 | 9 | 12 |
| The use of fluid | Air | |||
| Action mode | Double action | |||
| Use the lowest pressure | 0.15MPa | 0.06MPa | 0.05MPa | |
| Maximum working pressure | 0.07Mpa | |||
| Environment and fluid temperature | Without magnatic switch: -10-+70°C With magnetic switch:10-+60°C (But not frozen0 | |||
| Piston speed | 50-500 mm/s | |||
| Allow the energy J | 0.0125 | 0.025 | 0.05 | 0.1 |
| The magnetic switch selection | Reed type: D-A9◻,Solid state electronic type: D-M9◻ | |||
| Take over product size | M5x0.8 | |||
| Standard stroke | 5,10,15,20,25,30,40,50,60 | |||
