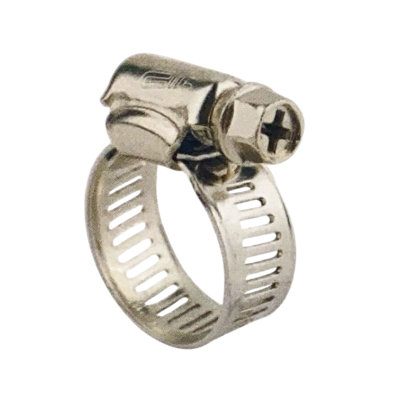

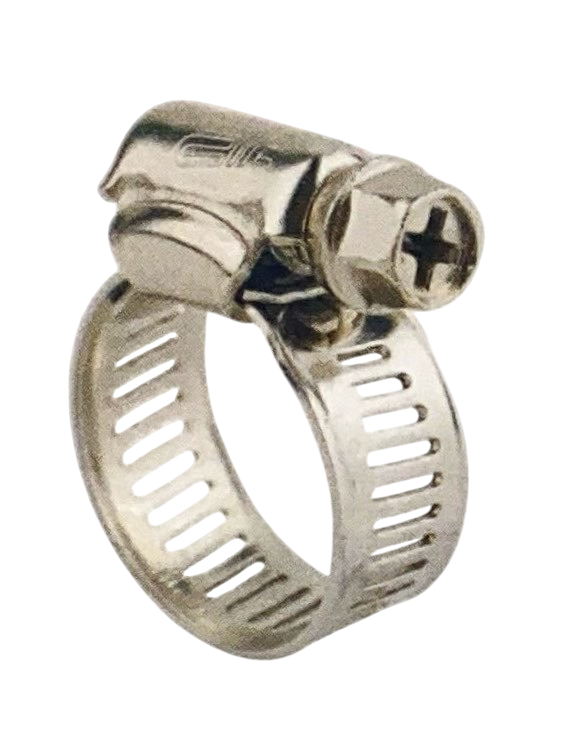

Stainless steel Hose clamps จำนวนผู้เข้าชม: 0 ครั้ง
คุณสมบัติ,รายละเอียดอื่นๆ: Stainless steel Hose clamps
| Model | Scope of use | Band width (L min) | Belt thickness (H min) | Torque N • m | Pressure Mpa | Texture of material (Stainless steel) | |
| Metric (ø mm) | Inch (ø 1n) | ||||||
| HG 6-12 (HG8-12) | 6-12(8-12) | 7/12"-1/2" | 8 | 0.6 | 3.2-6 | 1.6 | 304 |
| HG 10-16 | 10-16 | 3/8"-5/8" | 10 | 0.7 | 4.5-8 | 1.4 | |
| HG 13-19 | 13-19 | 1/2"-3/4" | 10 | 0.7 | 4.5-8 | 1.4 | |
| HG 16-25 | 16-25 | 5/8"-1" | 8 | 0.6 | 3.2-6 | 1.6 | |
| HG18-29 (HG19-29) | 18-29(19-29) | 3/4"-1 1/8" | 10 | 0.7 | 4.5-8 | 1.4 | |
| HG 18-32 | 18-32 | 3/4"-1 1/4" | 12.7 | 0.7 | 6-10 | 0.7 | |
| HG 21-38 | 21-38 | 7/8"-1 1/2" | 12.7 | 0.7 | 6-10 | 0.7 | |
| HG 21-44 | 21-44 | 7/8"-1 3/4" | 12.7 | 0.7 | 6-10 | 0.7 | |
| HG 27-51 | 27-51 | 1 1/8"-2" | 12.7 | 0.7 | 6-10 | 0.7 | |
| HG 33-57 | 33-57 | 1 3/8"-2 1/4" | 12.7 | 0.7 | 6-10 | 0.7 | |
| HG 40-64 (HG40-63) | 40-64(40-63) | 1 1/2"-2 1/2" | 12.7 | 0.7 | 6-10 | 0.7 | |
| HG 44-67 | 44-67 | 1 3/4"-2 5/8" | 12.7 | 0.7 | 6-10 | 0.7 | |
| HG 46-70 | 46-70 | 1 7/8"-2 3/4" | 12.7 | 0.7 | 6-10 | 0.3 | |
| HG 52-76 | 52-76 | 2"-3" | 12.7 | 0.7 | 6-10 | 0.3 | |
| HG 60-83 (HG59-82) | 60-83(59-82) | 2 3/8"-3 1/4" | 12.7 | 0.7 | 6-10 | 0.3 | |
| HG 65-89 | 65-89 | 2 5/8"-3 1/2" | 12.7 | 0.7 | 6-10 | 0.3 | |
| HG 76-92 | 76-92 | 3"-3 5/8" | 12.7 | 0.7 | 6-10 | 0.3 | |
| HG 78-101 | 78-101 | 3 1/16"-4" | 12.7 | 0.7 | 6-10 | 0.3 | |
| HG 91-114 | 91-114 | 3 1/816"-4 1/2" | 12.7 | 0.7 | 6-10 | 0.3 | |
| HG 105-127 | 105-127 | 4 1/8"-5" | 12.7 | 0.7 | 6-10 | 0.3 | |
| HG 118-140 | 118-140 | 4 5/8"-5 1/2" | 12.7 | 0.7 | 6-10 | 0.3 | |
| HG 130-152 | 130-152 | 5 1/8"-6" | 12.7 | 0.7 | 6-10 | 0.3 | |
| HG 143-165 (HG141-165) | 143-165(141-165) | 5 5/8"-12" | 12.7 | 0.7 | 6-10 | 0.3 | |
