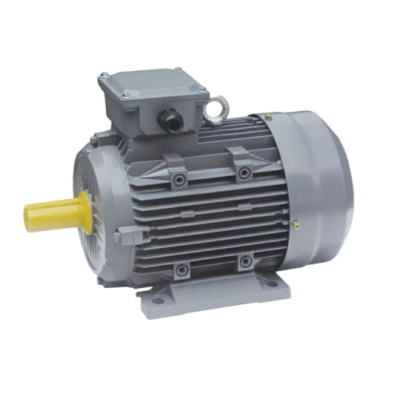

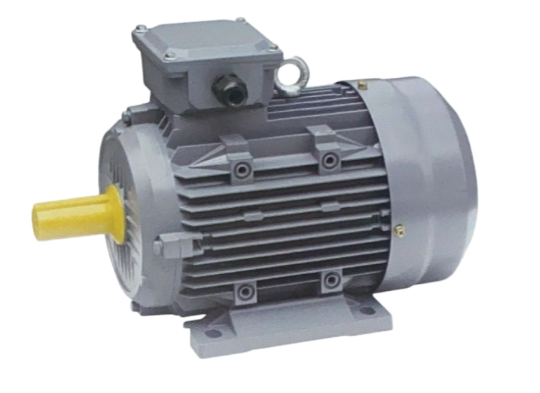

Aluminium housing three-phase induction motor จำนวนผู้เข้าชม: 0 ครั้ง
คุณสมบัติ,รายละเอียดอื่นๆ: Aluminium housing three-phase induction motor
| Type | Rated Power KW | Rated Current (A) | Efficiency n(%) | Power Factor (CosØ) | Rated Speed (r/min) | Locked current | Locked torque | Max. Torque |
| Rated Current Tstart/Tn | Rated Torque Ist/In | Rated torque Tmax/Tn | ||||||
| 380V 50Hz Synchronous Speed 3000r/min (2Poles) | ||||||||
| MS561-2 | 0.09 | 0.30 | 60 | 0.76 | 2750 | 2.3 | 6.0 | 2.4 |
| MS562-2 | 0.12 | 0.37 | 63 | 0.78 | 2750 | 2.3 | 6.0 | 2.4 |
| MS631-2 | 0.18 | 0.53 | 65 | 0.80 | 2780 | 2.3 | 6.0 | 2.4 |
| MS632-2 | 0.25 | 0.69 | 68 | 0.81 | 2780 | 2.3 | 6.0 | 2.4 |
| MS711-2 | 0.37 | 0.99 | 70 | 0.81 | 2800 | 2.3 | 6.0 | 2.4 |
| MS712-2 | 0.55 | 1.40 | 73 | 0.82 | 2800 | 2.3 | 6.0 | 2.4 |
| MS801-2 | 0.75 | 1.83 | 75 | 0.83 | 2825 | 2.3 | 6.0 | 2.4 |
| MS802-2 | 1.1 | 2.58 | 77 | 0.84 | 2825 | 2.3 | 6.5 | 2.4 |
| MS90S-2 | 1.5 | 3.43 | 79 | 0.84 | 2840 | 2.3 | 6.5 | 2.4 |
| MS90L-2 | 2.2 | 4.85 | 81 | 0.85 | 2840 | 2.3 | 6.5 | 2.4 |
| MS100L-2 | 3 | 6.31 | 83 | 0.87 | 2880 | 2.3 | 7.0 | 2.4 |
| MS112M-2 | 4 | 8.12 | 85 | 0.88 | 2890 | 2.3 | 7.0 | 2.4 |
| MS132S1-2 | 5.5 | 11.0 | 86 | 0.88 | 2900 | 2.3 | 7.0 | 2.4 |
| MS132S2-2 | 7.5 | 14.9 | 87 | 0.88 | 2900 | 2.3 | 7.0 | 2.4 |
| MS160M1-2 | 11 | 21.3 | 88 | 0.89 | 2930 | 2.3 | 7.0 | 2.4 |
| MS160M2-2 | 15 | 28.8 | 89 | 0.89 | 2930 | 2.3 | 7.0 | 2.4 |
| MS160L-2 | 18.5 | 34.7 | 90 | 0.90 | 2930 | 2.3 | 7.0 | 2.4 |
| 380V 50Hz Synchronous Speed 1500r/min(4Poles) | ||||||||
| MS561-4 | 0.06 | 0.27 | 50 | 0.68 | 1300 | 2.2 | 5.5 | 2.3 |
| MS562-4 | 0.09 | 0.36 | 54 | 0.70 | 1300 | 2.2 | 5.5 | 2.3 |
| MS631-4 | 0.12 | 0.44 | 57 | 0.72 | 1330 | 2.2 | 5.5 | 2.3 |
| MS632-4 | 0.18 | 0.62 | 60 | 0.73 | 1330 | 2.2 | 5.5 | 2.3 |
| MS711-4 | 0.25 | 0.79 | 65 | 0.74 | 1360 | 2.2 | 5.5 | 2.3 |
| MS712-4 | 0.37 | 1.12 | 67 | 0.75 | 1360 | 2.2 | 5.5 | 2.3 |
| MS801-4 | 0.55 | 1.57 | 71 | 0.75 | 1380 | 2.3 | 6.0 | 2.4 |
| MS802-4 | 0.75 | 2.05 | 73 | 0.76 | 1380 | 2.3 | 6.0 | 2.4 |
| MS90S-4 | 1.1 | 2.89 | 75 | 0.77 | 1390 | 2.3 | 6.0 | 2.4 |
| MS90L-4 | 1.5 | 3.70 | 78 | 0.79 | 1390 | 2.3 | 6.0 | 2.4 |
| MS100L1-4 | 2.2 | 5.16 | 80 | 0.81 | 1410 | 2.3 | 7.0 | 2.4 |
| MS100L2-4 | 3 | 6.78 | 82 | 0.82 | 1410 | 2.3 | 7.0 | 2.4 |
| MS112M-4 | 4 | 8.82 | 84 | 0.82 | 1435 | 2.3 | 7.0 | 2.4 |
| MS132S-4 | 5.5 | 11.8 | 85 | 0.83 | 1445 | 2.3 | 7.0 | 2.4 |
| MS132M-4 | 7.5 | 15.6 | 87 | 0.84 | 1445 | 2.3 | 7.0 | 2.4 |
| MS160M-4 | 11 | 22.3 | 88 | 0.84 | 1450 | 2.2 | 7.0 | 2.3 |
| MS160L-4 | 15 | 30.1 | 89 | 0.85 | 1450 | 2.2 | 7.0 | 2.3 |
| 380V 50Hz Synchronous Speed 1000r/min(6Poles) | ||||||||
| MS711-6 | 0.18 | 0.74 | 56 | 0.66 | 900 | 2.0 | 5.5 | 2.2 |
| MS712-6 | 0.25 | 0.95 | 59 | 0.68 | 900 | 2.0 | 5.5 | 2.2 |
| MS801-4 | 0.37 | 1.30 | 62 | 0.70 | 900 | 2.0 | 5.5 | 2.2 |
| MS802-6 | 0.55 | 1.79 | 65 | 0.72 | 900 | 2.0 | 5.5 | 2.2 |
| MS90S-6 | 0.75 | 2.29 | 69 | 0.72 | 910 | 2.1 | 5.5 | 2.2 |
| MS90L-6 | 1.1 | 3.18 | 72 | 0.73 | 910 | 2.1 | 5.5 | 2.2 |
| MS100L-6 | 1.5 | 3.95 | 76 | 0.76 | 940 | 2.1 | 5.5 | 2.2 |
| MS112M-6 | 2.2 | 5.57 | 79 | 0.76 | 940 | 2.2 | 6.5 | 2.2 |
| MS132S-6 | 3 | 7.40 | 81 | 0.76 | 960 | 2.2 | 6.5 | 2.3 |
| MS132M1-6 | 4 | 9.75 | 82 | 0.76 | 960 | 2.2 | 6.5 | 2.3 |
| MS132M2-6 | 5.5 | 12.9 | 84 | 0.77 | 960 | 2.2 | 6.5 | 2.3 |
| MS160M-6 | 7.5 | 17.0 | 86 | 0.77 | 970 | 2.2 | 6.5 | 2.3 |
| MS160L-6 | 11 | 24.2 | 87 | 0.78 | 970 | 2.2 | 6.5 | 2.3 |
