Pressure switch » SMALL MULTI-PURPOSE PRESSUTE SWITCH

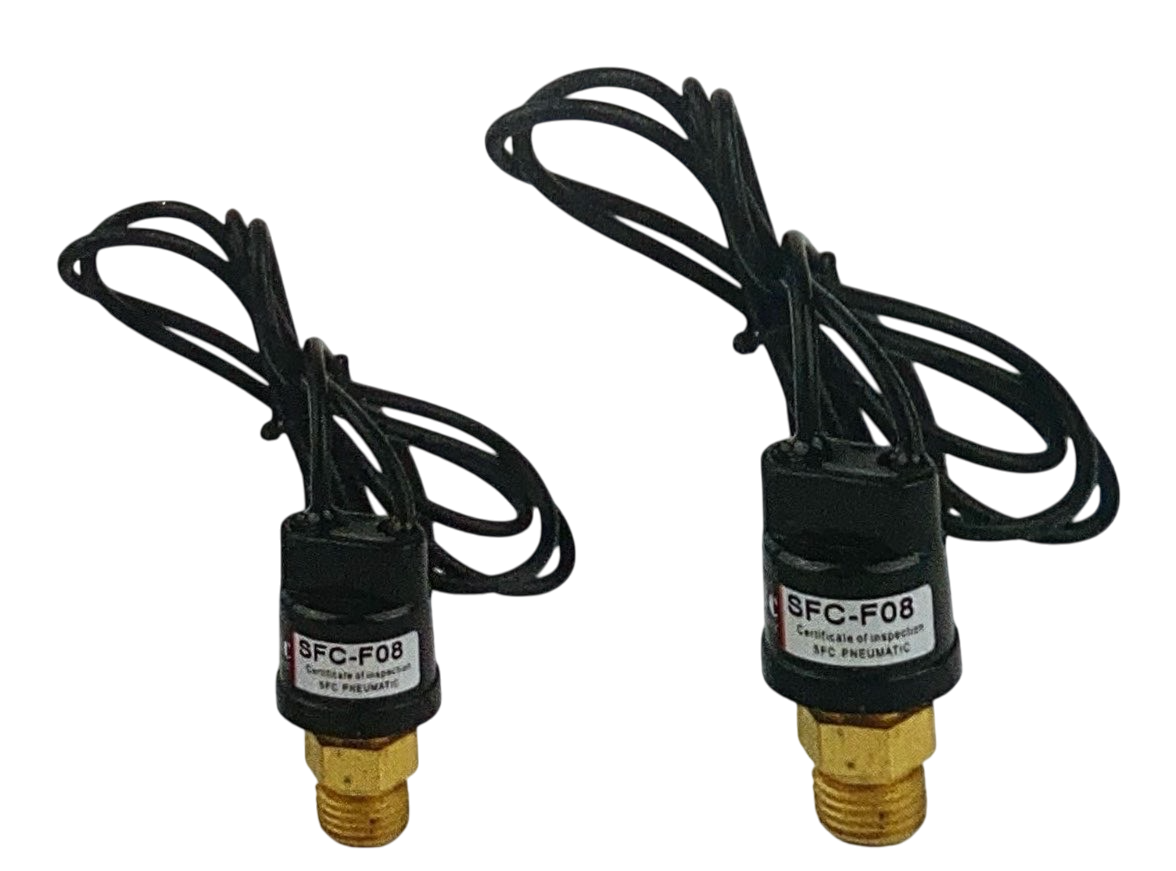

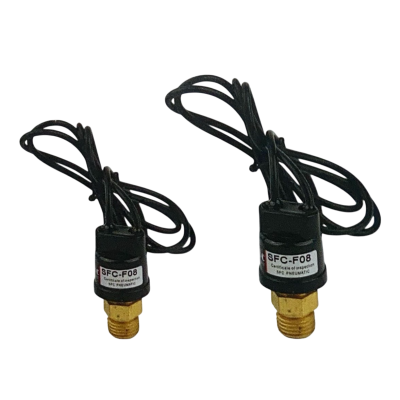

SMALL MULTI-PURPOSE PRESSUTE SWITCH จำนวนผู้เข้าชม: 0 ครั้ง
คุณสมบัติ,รายละเอียดอื่นๆ: SMALL MULTI-PURPOSE PRESSUTE SWITCH
| Model | SFC-F08-01 | SFC-F08-02 | ||
| Connection | R1/8 | R1/4 | ||
| Media | Air,Water,Motor lils,transmission oils,Hydrocarbon Media,Refrigeration fluid | |||
| Pressure Range/ | Action pressure | Tolerance | Proof Pressure | |
| Tolerance/ | 0.2-6bar (low pressure) | ±0.5bar | 15bar | |
| Proof Pressure | 6-10bar | ±0.7bar | 35bar | |
| Burst Pressure | 5000psi | |||
| Operating Temperature Range | low pressure:-30-65°C,High pressure:-35-120°C,Medium temperature:-50-120°C | |||
| Electric Rating | 120Vac 6FLA,40.2LRA, 240Vac 4FLA,26LRA, 120/240Vac 375VA, 36Vdc 3A | |||
| Endurance | 10000 | |||
