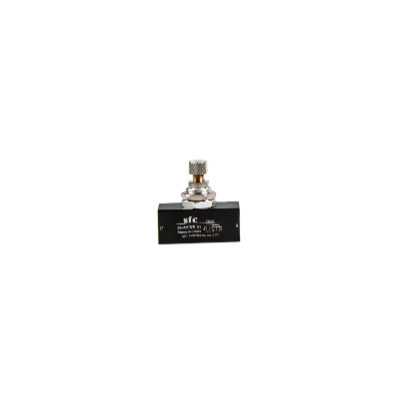

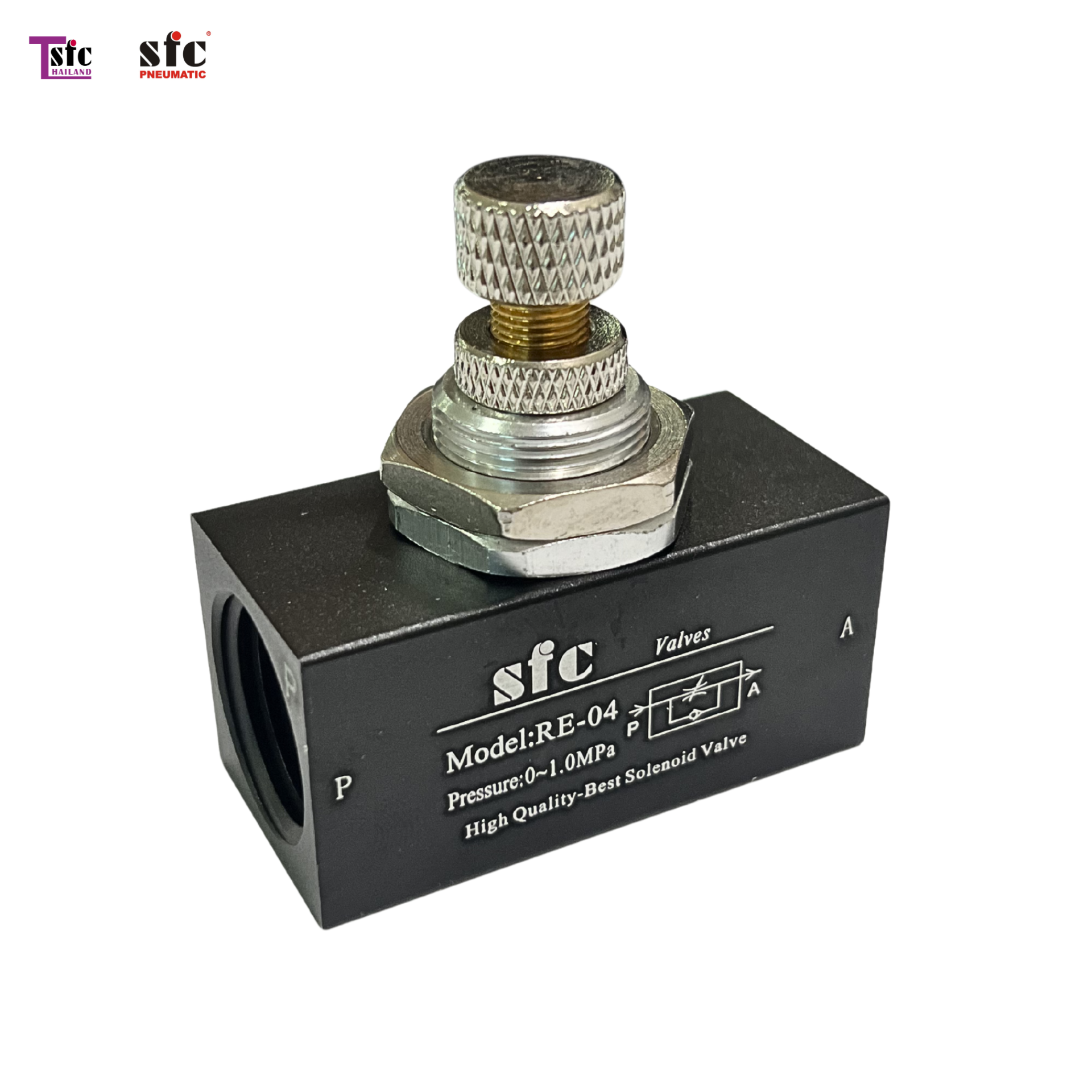

SPEED CONTROL VALVE RE SERIES จำนวนผู้เข้าชม: 0 ครั้ง
คุณสมบัติ,รายละเอียดอื่นๆ: SPEED CONTROL VALVE RE SERIES
| Type | Port size | Effective area | Temperature | Fluid | Material | Pressure rang | Operating Pressure |
| RE-01 | PT1/8 | 3.8mm | -5-55°C | Air | Aluminum alloy | 0-10.2kgf/cm² | 1.5-8kgf/cm² |
| RE-02 | PT1/4 | 6.0mm | -5-55°C | ||||
| RE-03 | PT3/8 | 32mm | -5-55°C | ||||
| RE-04 | PT1/2 | 32.8mm | -5-55°C |
