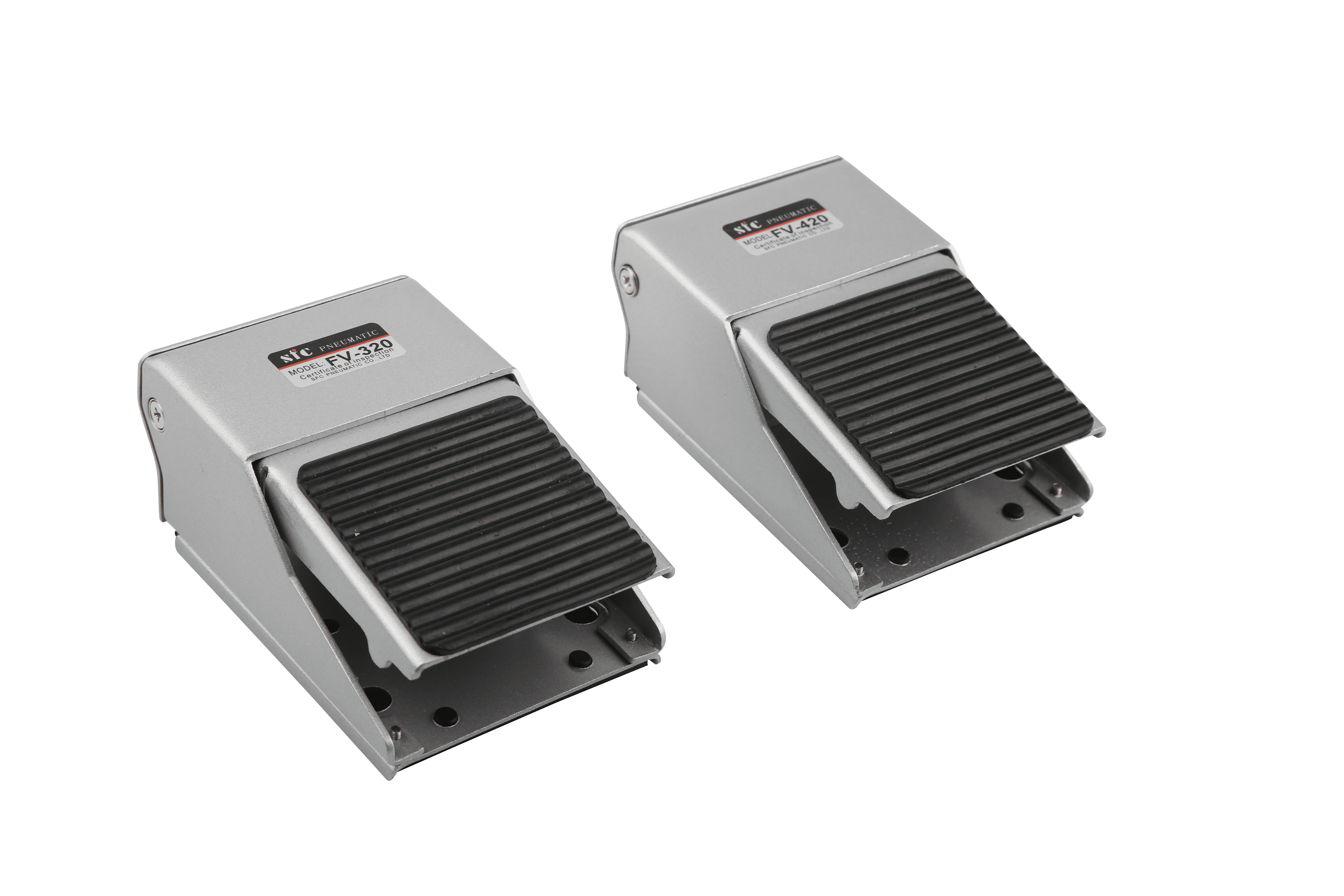

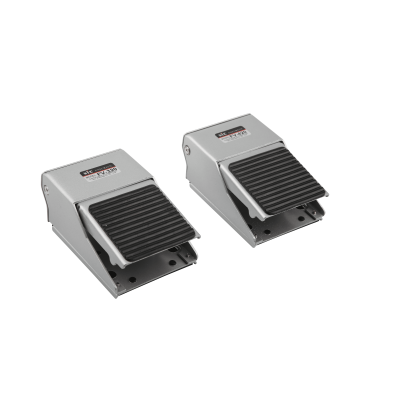

FOOT VALVE FV/FOV SERIES จำนวนผู้เข้าชม: 0 ครั้ง
คุณสมบัติ,รายละเอียดอื่นๆ: FOOT VALVE FV/FOV SERIES
| Type | Port size | Effective area | CV Value | Control type | Valve type | Operating pressure |
| FV-02 | PT1/4 | 16mm² | 0.89 | Hand return | 3/2 way | 0-10kgf/cm² |
| FOV-320 | PT1/4 | 24mm² | 1.20 | Spring return | 5/2 way | |
| FOV-320A | PT1/4 | 24mm² | 1.20 | Selflock | ||

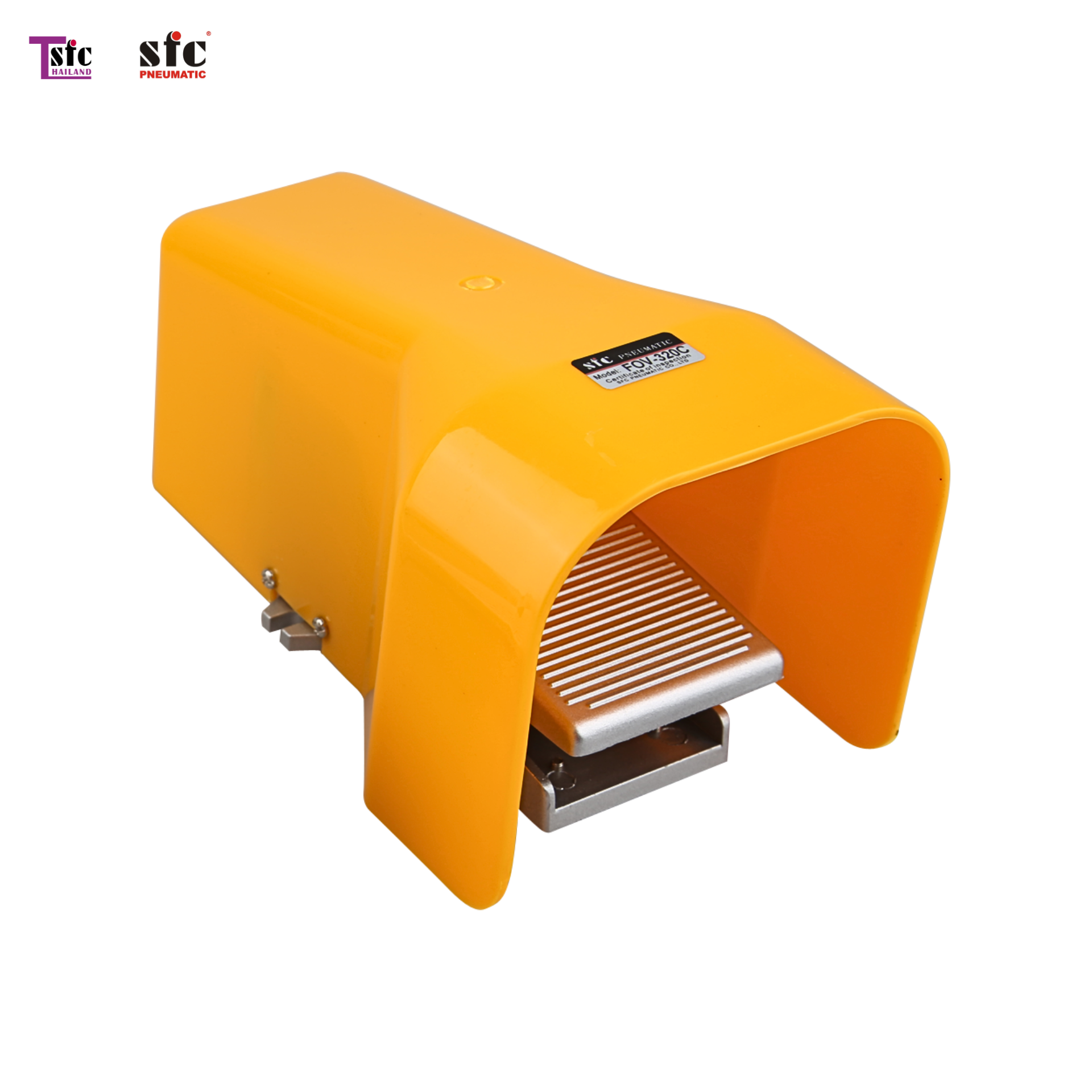

| FOV-320C | PT1/4 | 24mm² | 1.20 | Spring return+cover | ||
| FOV-320AC | PT1/4 | 24mm² | 1.20 | Selflock+cover |
