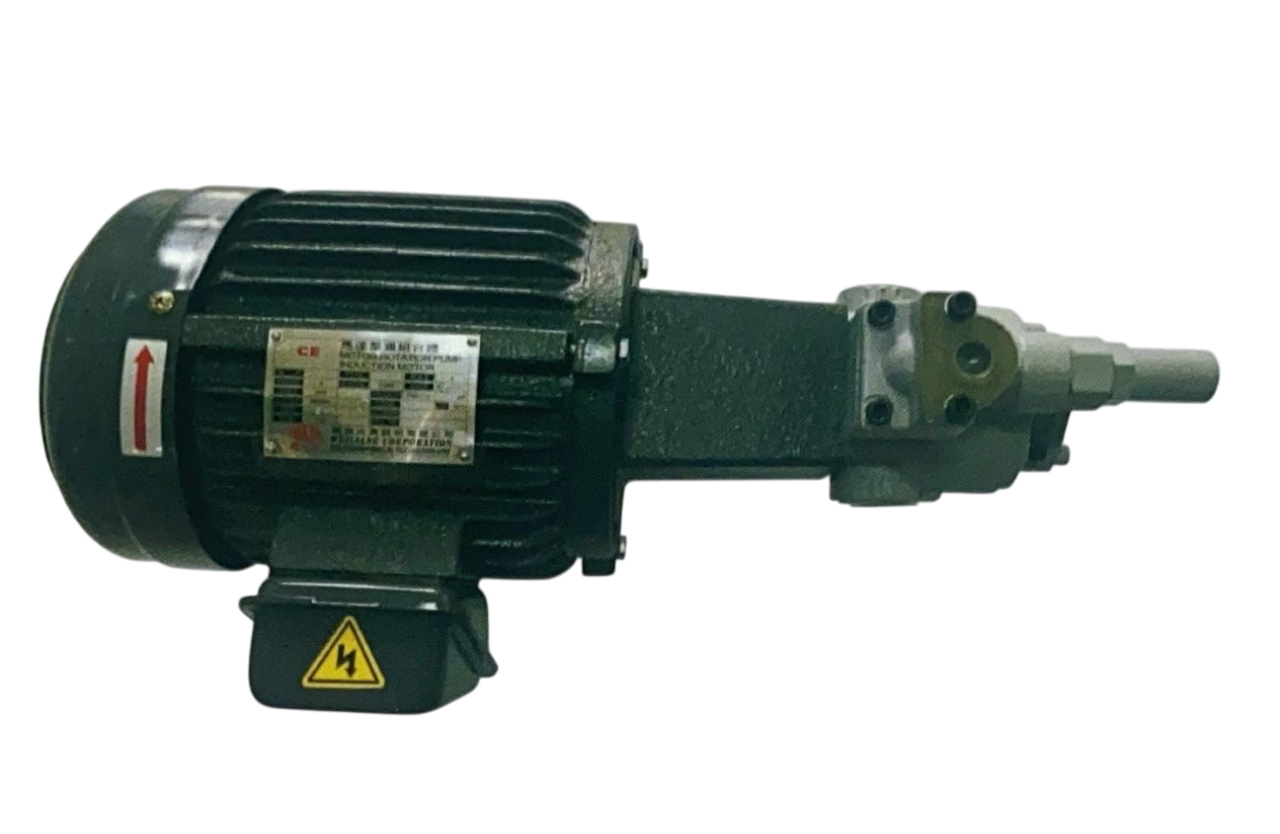

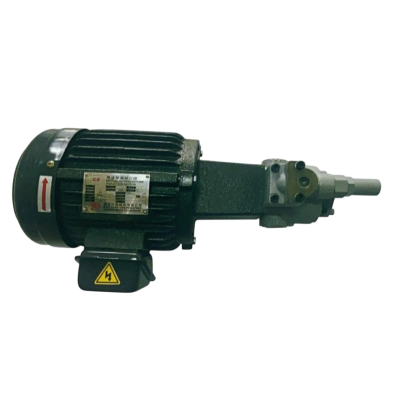

Oil Pump With Motor Set จำนวนผู้เข้าชม: 0 ครั้ง
คุณสมบัติ,รายละเอียดอื่นๆ: Oil Pump With Motor Set
| Mark Motor output power | K | R | L | I | P | E | F | Q | H | J | M | N | Z |
| 400W | 187 | 133 | 320 | 71°-05 | 170 | 62.5 | 50 | 140 | 180 | 10 | 160 | 121 | 10 |
| 750W | 187 | 133 | 320 | 80°-0.5 | 170 | 62.5 | 50 | 140 | 180 | 10 | 165 | 130 | 10 |
| 1500W | 195 | 155 | 350 | 90°-0.5 | 195 | 70 | 62.5 | 142 | 195 | 10 | 180 | 155 | 10 |
| Pump form Type | 50Hz 4P (1500rpm) | 60Hz 4P (1800rpm) | ||||||
| Spit out quantity l/min | Maximum presure of output power to motor(kgf/cm²) | Spit out quantity l/min | Maximum presure of output power to motor(kgf/cm²) | |||||
| 400W | 750W | 1500W | 400W | 750W | 1500W | |||
| ROP-203HAM | 4.2 | 30.0 | 30.0 | 30.0 | 4.2 | 30.0 | 30.0 | 30.0 |
| ROP-204HAM | 6.0 | 21.5 | 30.0 | 30.0 | 6.0 | 21.5 | 30.0 | 30.0 |
| ROP-206HAM | 9.0 | 10.5 | 25.0 | 25.0 | 9.0 | 10.5 | 25.0 | 25.0 |
| ROP-208HAM | 12.0 | 7.0 | 23.0 | 25.0 | 12.0 | 7.0 | 23.0 | 25.0 |
| ROP-210HAM | 15.0 | 4.5 | 15.5 | 25.0 | 15.0 | 4.5 | 15.5 | 25.0 |
| ROP-212HAM | 18.0 | 3.5 | 13.5 | 20.0 | 18.0 | 3.5 | 13.5 | 20.0 |
| ROP-216HAM | 24.0 | 2.0 | 8.5 | 20.0 | 24.0 | 2.0 | 8.5 | 20.0 |
| ROP-220HAM | 30.0 | --- | 5.5 | 15.0 | 30.0 | --- | 5.5 | 15.0 |
| Pump | Rotor witdth | C | Caliber D |
| ROP-203HA+VB | 7 | 83 | PT1/2 |
| ROP-204HA+VB | 10 | 86 | |
| ROP-206HA+VB | 15 | 91 | |
| ROP-208HA+VB | 20 | 96 | |
| ROP-2010HA+VB | 25 | 101 | PT3/4 |
| ROP-2012HA+VB | 30 | 106 | |
| ROP-2016HA+VB | 40 | 116 | |
| ROP-2020HA+VB | 50 | 11A2 |
