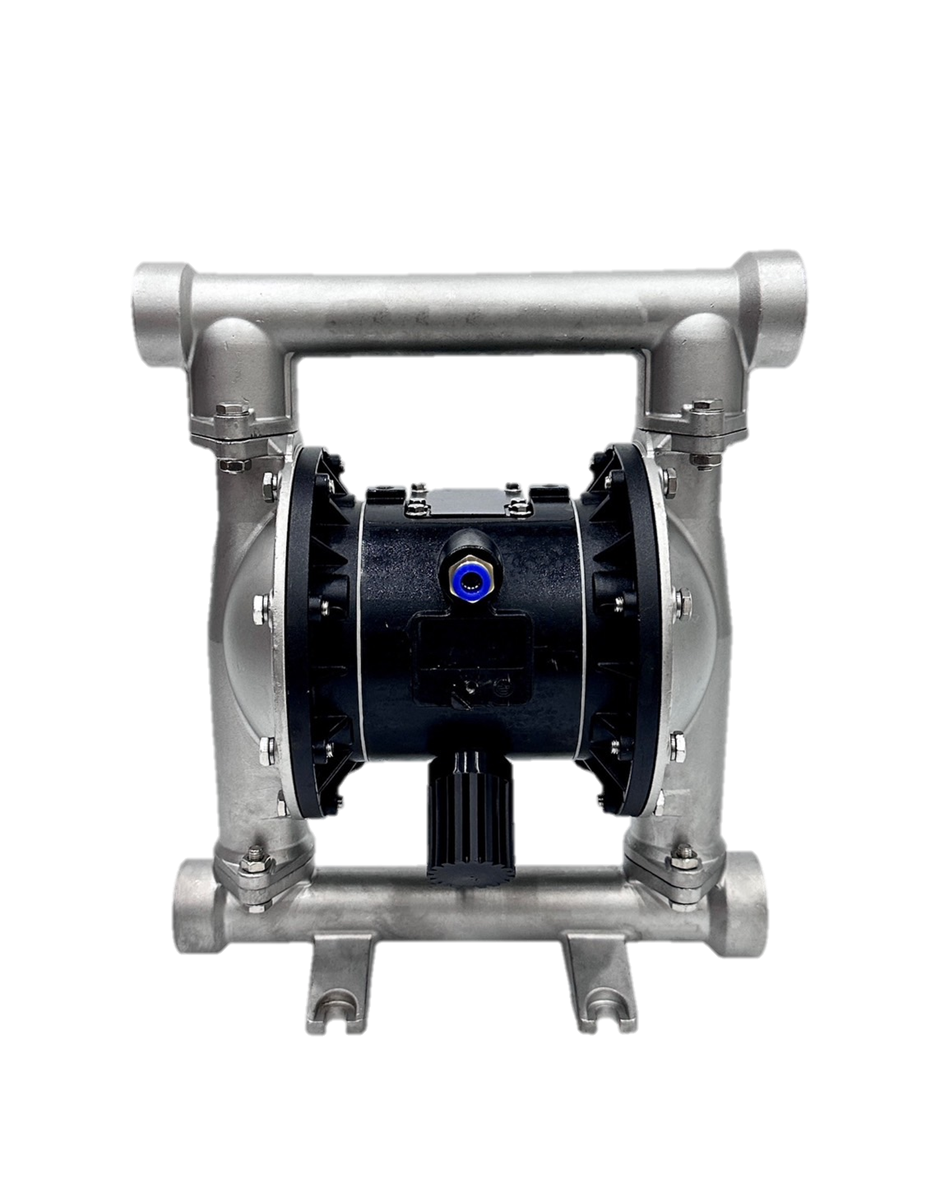

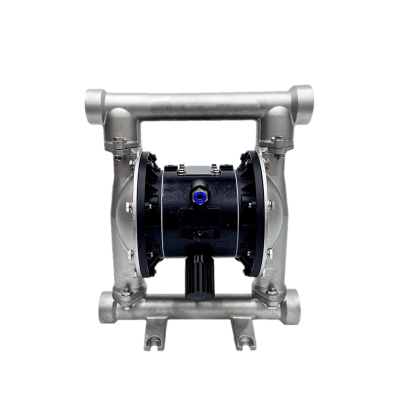

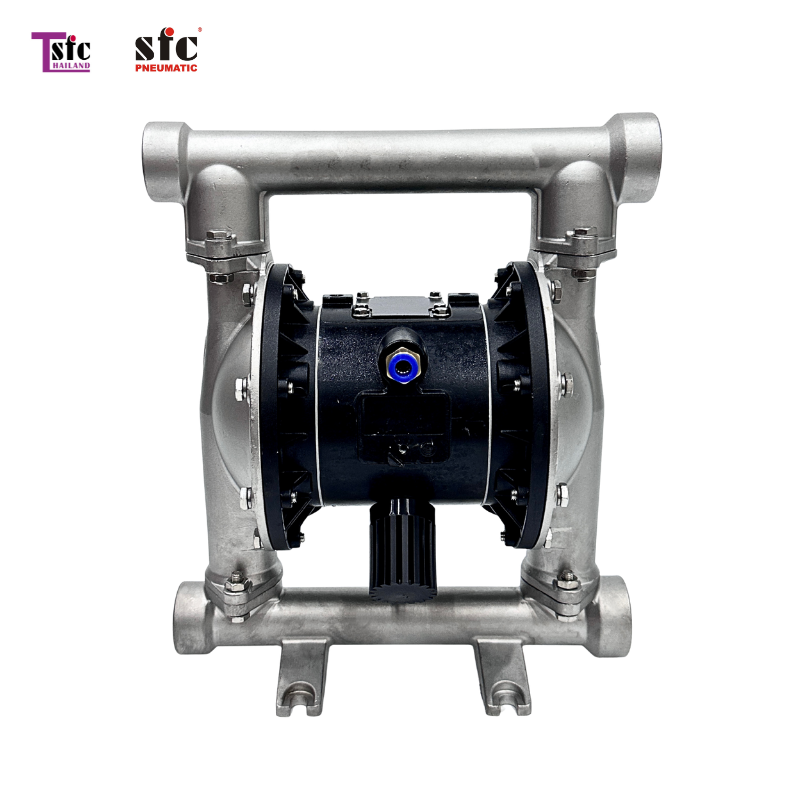

Air Operated Double Diaphragm Pump จำนวนผู้เข้าชม: 0 ครั้ง
คุณสมบัติ,รายละเอียดอื่นๆ: Air Operated Double Diaphragm Pump
| Model | Maximum flow rate (L/min) | H-Max (m) | Maximum suction range (m) | Export pressure (kg) | caliber (mm) | Gas entry caliber (in) | Particle diameter (mm) |
| QBY3-10 | 18.9 | 70 | 2.5-3 | 7 | 10 | 1/4 | 1.5 |
| QBY3-15 | 18.9 | 70 | 2.5-3 | 7 | 15 | 1/4 | 1.5 |
| QBY3-20 | 67 | 70 | 4.5-7.6 | 7 | 20 | 1/4 | 2.5 |
| QBY3-25 | 67 | 70 | 4.5-7.6 | 7 | 25 | 1/4 | 2.5 |
| QBY3-25A | 151 | 84 | 5.4 | 8.4 | 25 | 1/2 | 3.2 |
| QBY3-32 | 151 | 84 | 5.4 | 8.4 | 32 | 1/2 | 3.2 |
| QBY3-40 | 151 | 84 | 5.4 | 8.4 | 40 | 1/2 | 3.2 |
| QBY3-50 | 378.5 | 84 | 5.48 | 8.4 | 50 | 1/2 | 5.48 |
| QBY3-65 | 378.5 | 84 | 5.48 | 8.4 | 65 | 1/2 | 5.48 |
| QBY3-80 | 568 | 84 | 5.48 | 8.4 | 80 | 1/2 | 6.3 |
| QBY3-100 | 568 | 84 | 5.48 | 8.4 | 100 | 1/2 | 6.3 |
| QBY3-125 | 1041 | 84 | 2.4-7.6 | 8.4 | 125 | 3/4 | 10 |
| QBY3-150 | 1041 | 84 | 2.4-7.6 | 8.4 | 150 | 3/4 | 10 |
