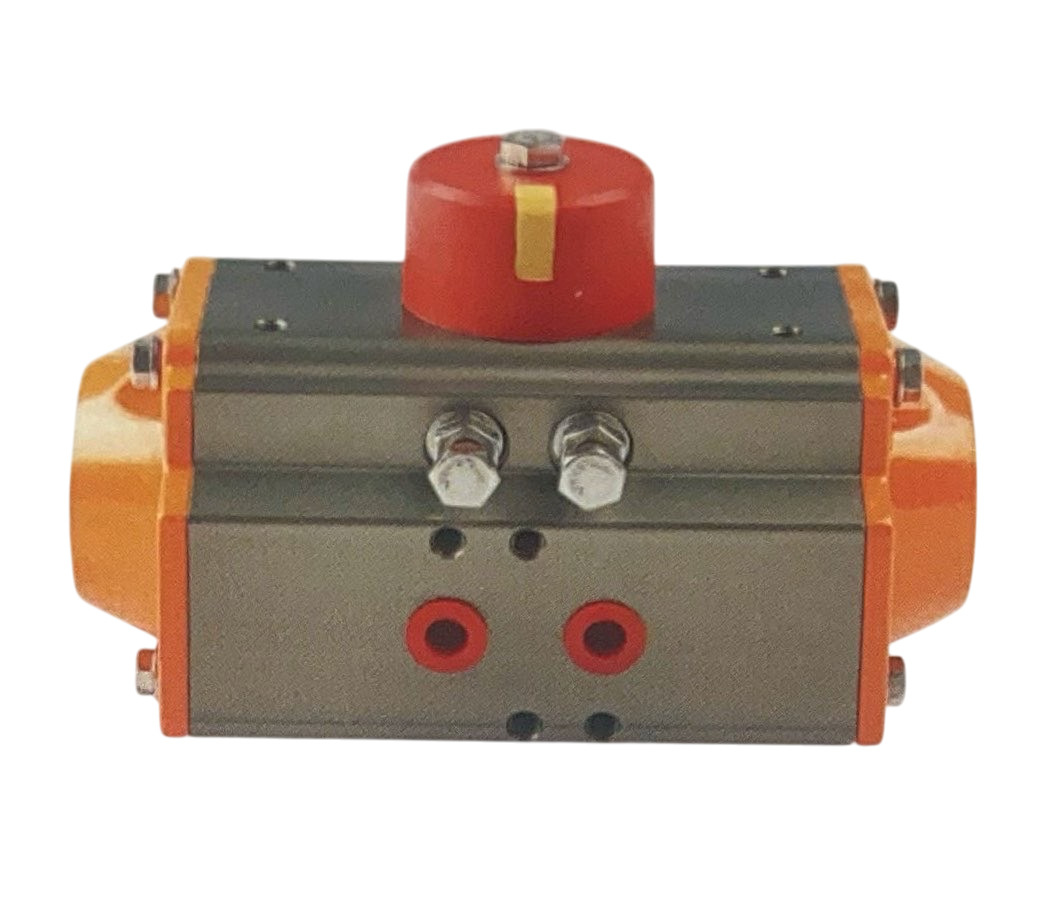

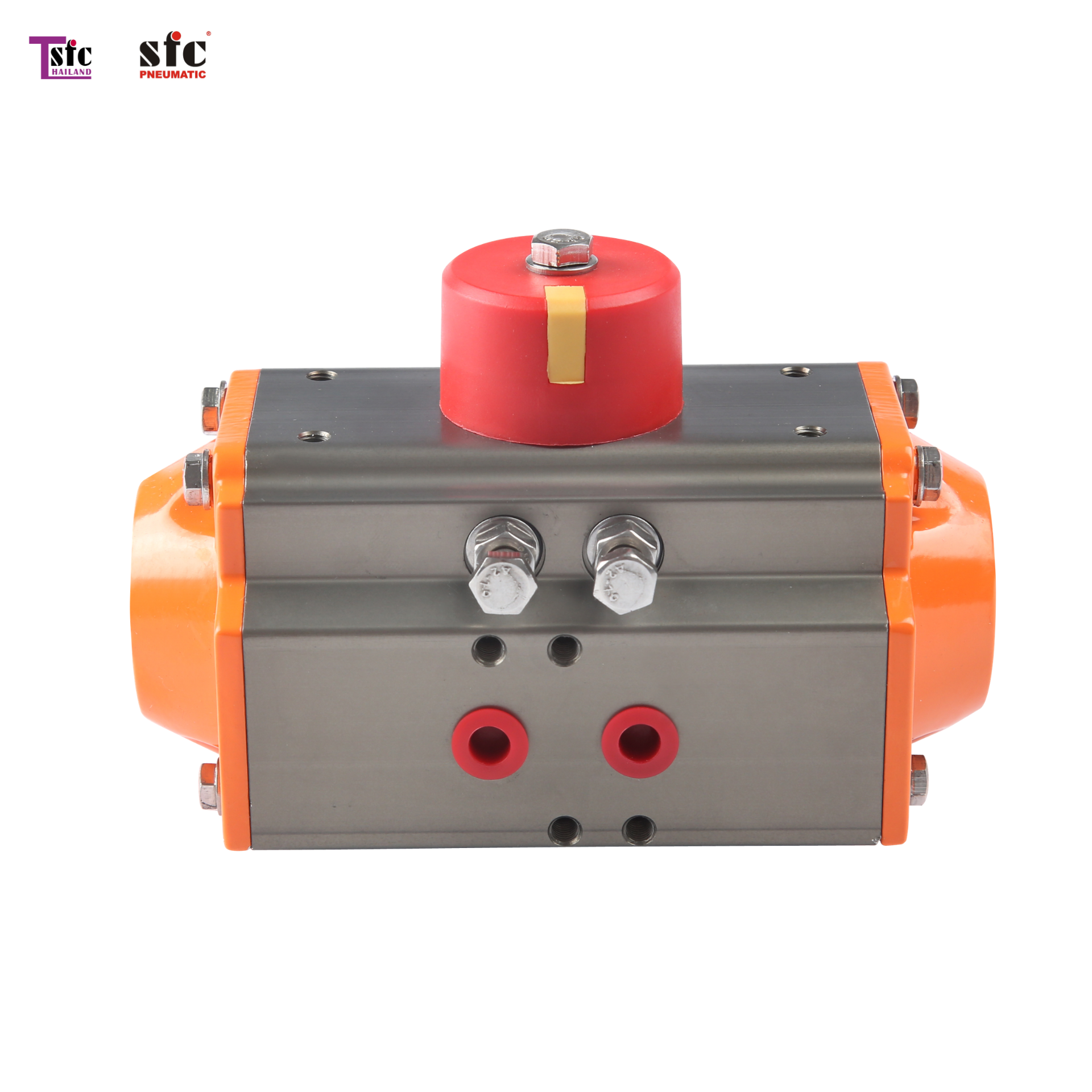

PNEUMATIC ACTUATOR จำนวนผู้เข้าชม: 0 ครั้ง
คุณสมบัติ,รายละเอียดอื่นๆ: PNEUMATIC ACTUATOR
Model | A | B | C | D | E | F | G | H | I | I-1 | J | J-1 | K | L | M | N | P | Z | Air |
AT-52 | 30 | 80 | 30 | 42.5 | 72.4 | 92.4 | 50.5 | 20 | 36 | F03 | 50 | F05 | M5X8 | M6X10 | 11 | 14 | 42 | 150 | 1/4" |
AT-63 | 30 | 80 | 36 | 47 | 88.5 | 98.5 | 69.5 | 20 | 50 | F05 | 70 | F07 | M6X10 | M8X13 | 14 | 18 | 42 | 171 | 1/4" |
AT-75 | 30 | 80 | 42.5 | 53 | 100 | 120 | 78 | 20 | 50 | F05 | 70 | F07 | M6X10 | M8X13 | 14 | 18 | 42 | 186 | 1/4" |
AT-83 | 30 | 80 | 46.5 | 57 | 109.5 | 129.5 | 86 | 20 | 50 | F05 | 70 | F07 | M6X10 | M8X13 | 17 | 21 | 42 | 206 | 1/4" |
AT-92 | 30 | 80 | 50 | 58 | 117 | 137 | 90 | 20 | 50 | F05 | 70 | F07 | M6X10 | M8X13 | 17 | 21 | 42 | 265 | 1/4" |
AT-105 | 30 | 80 | 57.5 | 64 | 135 | 155 | 104.5 | 20 | 70 | F07 | 102 | F10 | M8X13 | M10X16 | 22 | 27 | 42 | 272 | 1/4" |
AT-125 | 30 | 80 | 67.5 | 74.5 | 157 | 177 | 120.5 | 20 | 70 | F07 | 102 | F10 | M8X13 | M10X16 | 22 | 27 | 60 | 304 | 1/4" |
AT-140 | 30 | 80 | 75.5 | 75.5 | 174 | 194 | 125 | 20 | 102 | F10 | 125 | F12 | M10X16 | M12X20 | 27 | 32 | 60 | 395 | 1/4" |
AT-160 | 30 | 130 | 87 | 87 | 198 | 228 | 143 | 30 | 102 | F10 | 125 | F12 | M10X16 | M12X20 | 27 | 32 | 60 | 462 | 1/4" |
AT-190 | 30 | 130 | 103 | 103 | 232 | 262 | 172 | 30 | 102 | F10 | 140 | F14 | M10X16 | M16X25 | 36 | 40 | 85 | 520 | 1/4" |
AT-210 | 30 | 130 | 113 | 113 | 257 | 287 | 194 | 30 | 102 | F10 | 140 | F14 | M10X16 | M16X25 | 36 | 40 | 85 | 538 | 1/4" |
AT-240 | 30 | 130 | 130 | 130 | 292 | 322 | 230 | 30 | 165 | F16 | M20X30 | 46 | 50 | 90 | 592 | 1/4" | |||
AT-270 | 30 | 130 | 147 | 147 | 331 | 361 | 253 | 30 | 165 | F16 | M20X30 | 46 | 50 | 90 | 713 | 1/4" | |||
AT-300 | 30 | 130 | 161 | 168 | 354 | 384 | 290 | 30 | 165 | F16 | 215 | F20 | M20X30 | M20X30 | 46 | 50 | 90 | 771 | 1/4" |
