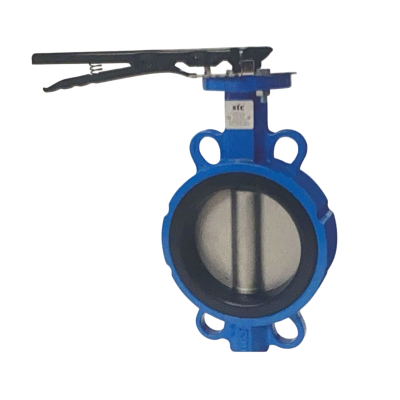

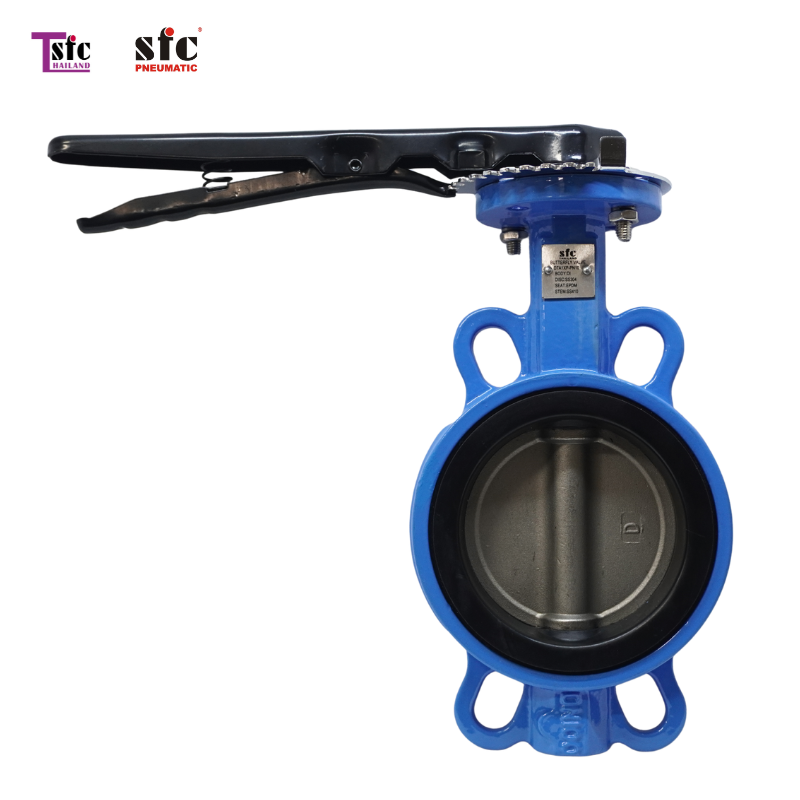

BUTTERFLY VALVE (ด้ามโยก) จำนวนผู้เข้าชม: 0 ครั้ง
คุณสมบัติ,รายละเอียดอื่นๆ: BUTTERFLY VALVE (ด้ามโยก)
| Type | DN | ØD1 | ØD2 | NXØB | L | H | K | E | 0X0 | NxØd | ISO |
| BTFV-1 1/2" | DN40 | Ø110 | 70 | 4XØ19 | 33 | 16 | 65 | 50 | 9X9 | 4xØ8 | F05 |
| BTFV-2" | DN50 | Ø125 | 73 | 4XØ19 | 42 | 16 | 65 | 50 | 9X9 | 4xØ8 | F05 |
| BTFV-2 1/2" | DN65 | Ø145 | 85 | 4XØ19 | 44.5 | 16 | 65 | 50 | 9X9 | 4xØ8 | F05 |
| BTFV-3" | DN80 | Ø160 | 100 | 4 (8) XØ19 | 44.5 | 16 | 65 | 50 | 9X9 | 4xØ8 | F05 |
| BTFV-4" | DN100 | Ø180 | 131 | 4 (8) XØ19 | 51 | 19 | 90 | 70 | 11X11 | 4xØ10 | F07 |
| BTFV-5" | DN125 | Ø210 | 155 | 4 (8) XØ19 | 54.5 | 20 | 90 | 70 | 14X14 | 4xØ10 | F07 |
| BTFV-6" | DN150 | Ø240 | 185 | 4 (8) XØ23 | 54.5 | 24 | 90 | 70 | 14X14 | 4xØ10 | F07 |
| BTFV-8" | DN200 | Ø295 | 234 | 4 (8) XØ23 | 60 | 29 | 90 | 70 | 17X17 | 4xØ10 | F07 |
| BTFV-10" | DN250 | Ø350 | 288 | 4 (12) XØ23 | 66 | 30 | 90 | 70 | 22X22 | 4xØ10 | F07 |
| BTFV-12" | DN300 | Ø400 | 340 | 4 (12) XØ23 | 76 | 30 | 125 | 102 | 22X22 | 4xØ12 | F10 |
