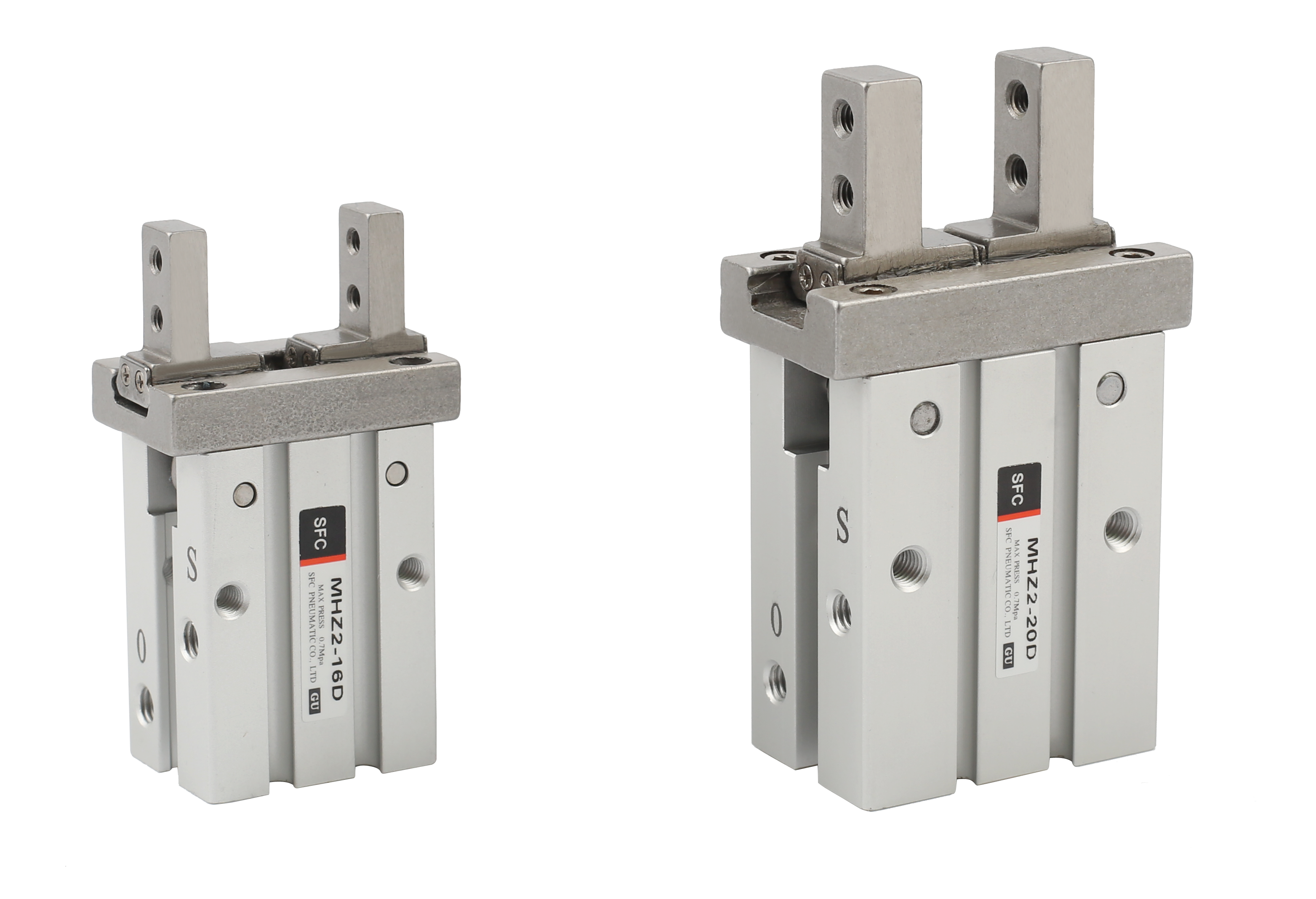

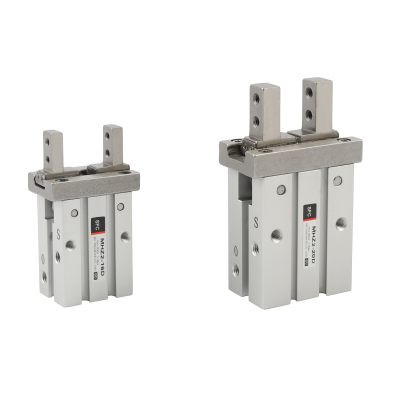

SULTI MOUNT CYLINDER SERIES MHZ2 จำนวนผู้เข้าชม: 0 ครั้ง
คุณสมบัติ,รายละเอียดอื่นๆ: SULTI MOUNT CYLINDER SERIES MHZ2
| Model | Double type | Double type | Model single open type | Double type | Model single open type | Double type | Port size | Stroke | Standard | Operating pressure |
| MHZ2-6D | 6.1 N | 3.3 N | MHZ2-6S | 1.9 N | MHZ2-6C | 3.7 N | M5X0.5 | 4mm | 180 c.p.m. | 0-8 kgf/cm² |
| HMZ2-10D | 17 N | 9.8 N | HMZ2-10S | 6.3 N | HMZ2-10C | 12 N | M5X0.5 | 4mm | 180 c.p.m. | |
| HMZ2-16D | 40 N | 30 N | HMZ2-16S | 24 N | HMZ2-16C | 31 N | M5X0.8 | 6mm | 180 c.p.m. | |
| HMZ2-20D | 66 N | 42 N | HMZ2-20S | 28 N | HMZ2-20C | 56 N | M5X0.8 | 10mm | 180 c.p.m. | |
| HMZ2-25D | 104 N | 65 N | HMZ2-25S | 45 N | HMZ2-25C | 83 N | M5X0.8 | 14mm | 180 c.p.m. | |
| HMZ2-32D | 193 N | 158 N | HMZ2-32S | 131 N | HMZ2-32C | 161 N | M5X0.8 | 22mm | 60 c.p.m. | |
| HMZ2-40D | 318 N | 254 N | HMZ2-40S | 137 N | HMZ2-40C | 267N | M5X0.8 | 30mm | 60 c.p.m. |
