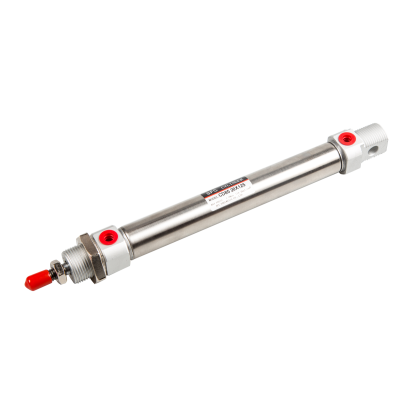

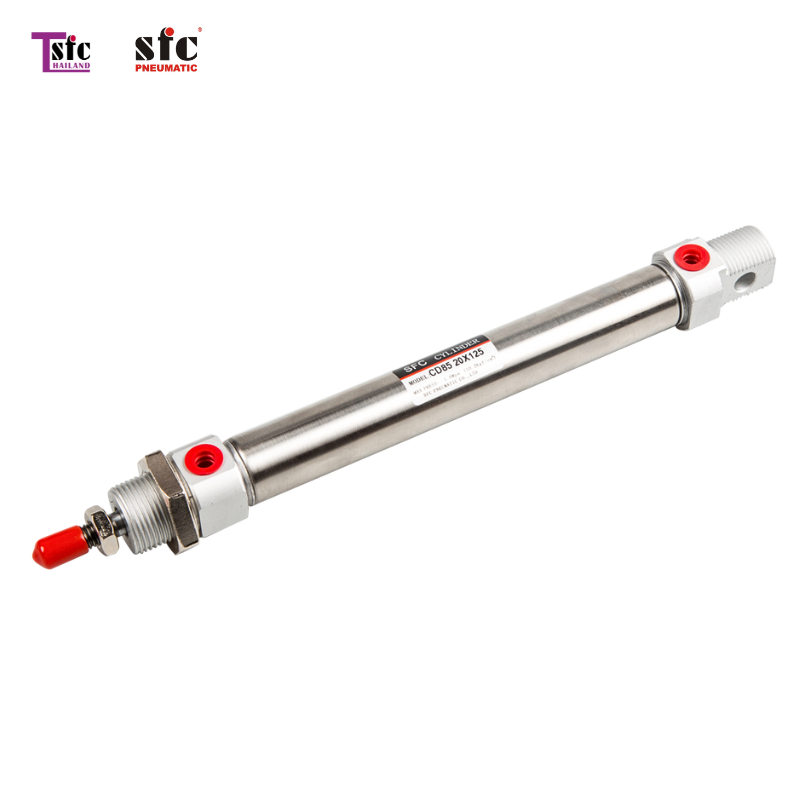

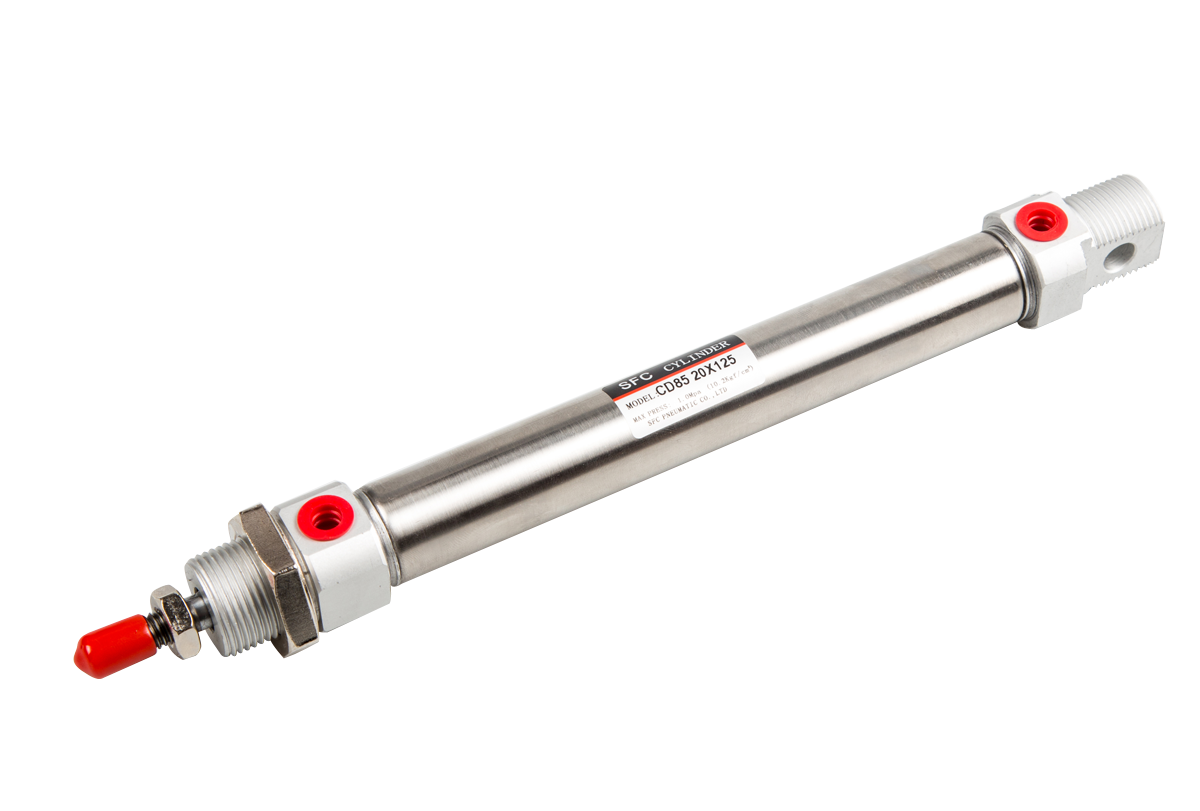

SLIM CYLINDER SERIES CD85 จำนวนผู้เข้าชม: 0 ครั้ง
คุณสมบัติ,รายละเอียดอื่นๆ: SLIM CYLINDER SERIES CD85
| Model | Bore size | Port size | Standard stroke (mm) | Max.Cylinder principle force | Piston port size | Body type | Valve type | Max.operating pressure |
| CD85 08 | 8 | M5 | 25-300 | 2.5Kgf | M4X0.7 | FA-front flange FB-rear flange CA-single clevis CB-double clevis LB-foot bracket Y-Y joint I-I joint | CD85 CD85D CD85J CS85 CT85 | 0-10 kgf/cm² |
| CD85 10 | 10 | M5 | 25-300 | 4Kgf | M4X0.7 | |||
| CD85 12 | 12 | M5 | 25-500 | 7Kgf | M6X1 | |||
| CD85 16 | 16 | M5 | 25-500 | 14Kgf | M6X1 | |||
| CD85 20 | 20 | PT1/8 | 25-500 | 28Kgf | M8X1.25 | |||
| CD85 25 | 25 | PT1/8 | 25-500 | 44Kgf | M10X1.25 |
